2 x F3800 Plus + 2 x BP3800 Batteries
Features

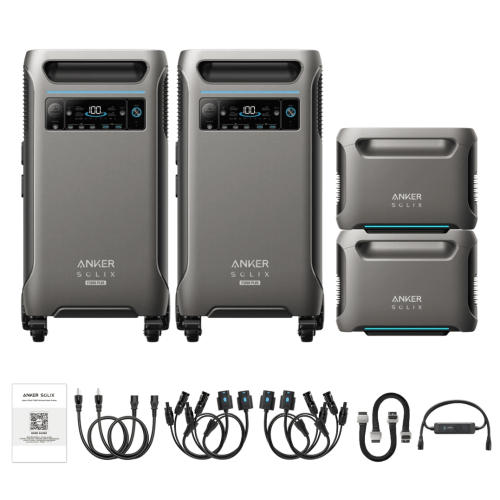

- Includes Anker SOLIX F3800 Plus Portable Power Station And BP3800 Expansion Battery
- Massive 7,680Wh Total Energy Storage Capacity
- 6,000-Watt Continuous Pure Sine Wave AC Output
- Expandable Up To 26.9kWh With Additional BP3800 Expansion Batteries
- Supports Up To 53.8kWh Capacity When Dual F3800 Plus Systems Are Connected
- Dual-Voltage 120V/240V Output Powers Home Appliances, HVAC Systems, And Well Pumps
- Industry-Leading 3,200W Solar Charging With Dual MPPT Controllers
- Charges From 0 To 100% In Under 2 Hours Under Optimal Solar Conditions
- Compatible With 240V Gas Generators Through 6,000W Generator Bypass Charging
- EV-Grade LiFePO4 Battery Chemistry With 3,000+ Charge Cycles
- Integrated Smart App Monitoring Via Wi-Fi And Bluetooth
- Direct EV Charging Capability Through NEMA Outlets
- RV Ready With NEMA TT-30 Outlet
- Built-In Wheels And Extendable Handle For Easier Mobility
- 5-Year Manufacturer Warranty
Specifications
| Total Capacity | 7,680Wh |
| Base Unit Capacity | 3,840Wh |
| Expansion Battery Capacity | 3,840Wh |
| Battery Chemistry | LiFePO4 (LFP) |
| Cycle Life | 3,000+ Cycles |
| AC Output Power | 6,000W Continuous |
| AC Voltage | 120V / 240V |
| Solar Input Power | 3,200W Max |
| MPPT Inputs | 2 x 1,600W |
| Solar Input Voltage Range | 11V–165V |
| Generator Bypass Charging | 6,000W |
| USB-C Output | 100W Max Per Port |
| Wi-Fi / Bluetooth | Yes |
| Dimensions (F3800 Plus) | 27.6 x 15.3 x 15.6 in. |
| Weight (F3800 Plus) | 136.7 lbs |
| Weight (BP3800 Battery) | 72.8 lbs |
Installation
- Place The F3800 Plus On A Stable, Level Surface With Adequate Ventilation
- Position The BP3800 Expansion Battery Adjacent To The Main Unit
- Connect The Expansion Battery Using The Included Expansion Cable
- Power On The F3800 Plus And Verify Battery Detection Through The LCD Display Or App
- Connect Solar Panels To Either MPPT Solar Input Port Following Voltage Specifications
- Configure Settings Through The Anker App Using Wi-Fi Or Bluetooth Connectivity
- For Whole-Home Backup Applications, Connect To A Compatible Transfer Switch Or Smart Home Power Kit
- Verify Proper Grounding And Electrical Protection Before Operation
- Follow All Local Electrical Codes And Manufacturer Installation Instructions

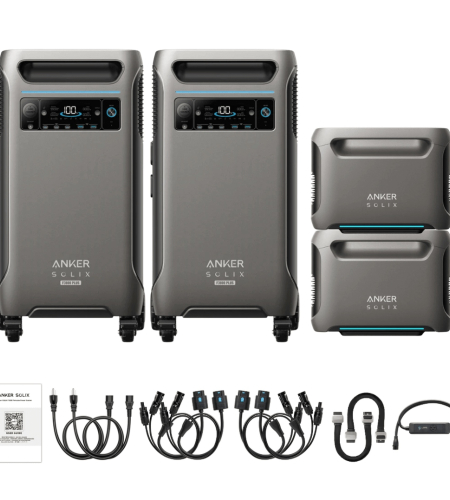

[Double Kit] Anker SOLIX F3800 Plus + Expansion Batteries
- Product Code: 2-F3800-2-BP3800
2 x F3800 Plus + 2 x BP3800 Batteries
Features
- Includes Anker SOLIX F3800 Plus Portable Power Station And BP3800 Expansion Battery
- Massive 7,680Wh Total Energy Storage Capacity
- 6,000-Watt Continuous Pure Sine Wave AC Output
- Expandable Up To 26.9kWh With Additional BP3800 Expansion Batteries
- Supports Up To 53.8kWh Capacity When Dual F3800 Plus Systems Are Connected
- Dual-Voltage 120V/240V Output Powers Home Appliances, HVAC Systems, And Well Pumps
- Industry-Leading 3,200W Solar Charging With Dual MPPT Controllers
- Charges From 0 To 100% In Under 2 Hours Under Optimal Solar Conditions
- Compatible With 240V Gas Generators Through 6,000W Generator Bypass Charging
- EV-Grade LiFePO4 Battery Chemistry With 3,000+ Charge Cycles
- Integrated Smart App Monitoring Via Wi-Fi And Bluetooth
- Direct EV Charging Capability Through NEMA Outlets
- RV Ready With NEMA TT-30 Outlet
- Built-In Wheels And Extendable Handle For Easier Mobility
- 5-Year Manufacturer Warranty
Specifications
| Total Capacity | 7,680Wh |
| Base Unit Capacity | 3,840Wh |
| Expansion Battery Capacity | 3,840Wh |
| Battery Chemistry | LiFePO4 (LFP) |
| Cycle Life | 3,000+ Cycles |
| AC Output Power | 6,000W Continuous |
| AC Voltage | 120V / 240V |
| Solar Input Power | 3,200W Max |
| MPPT Inputs | 2 x 1,600W |
| Solar Input Voltage Range | 11V–165V |
| Generator Bypass Charging | 6,000W |
| USB-C Output | 100W Max Per Port |
| Wi-Fi / Bluetooth | Yes |
| Dimensions (F3800 Plus) | 27.6 x 15.3 x 15.6 in. |
| Weight (F3800 Plus) | 136.7 lbs |
| Weight (BP3800 Battery) | 72.8 lbs |
Installation
- Place The F3800 Plus On A Stable, Level Surface With Adequate Ventilation
- Position The BP3800 Expansion Battery Adjacent To The Main Unit
- Connect The Expansion Battery Using The Included Expansion Cable
- Power On The F3800 Plus And Verify Battery Detection Through The LCD Display Or App
- Connect Solar Panels To Either MPPT Solar Input Port Following Voltage Specifications
- Configure Settings Through The Anker App Using Wi-Fi Or Bluetooth Connectivity
- For Whole-Home Backup Applications, Connect To A Compatible Transfer Switch Or Smart Home Power Kit
- Verify Proper Grounding And Electrical Protection Before Operation
- Follow All Local Electrical Codes And Manufacturer Installation Instructions
- Brand: ANKER
- SKU: 2-F3800-2-BP3800
- Viewed: 16
- Availability: In Stock
$6,150.00
