Features

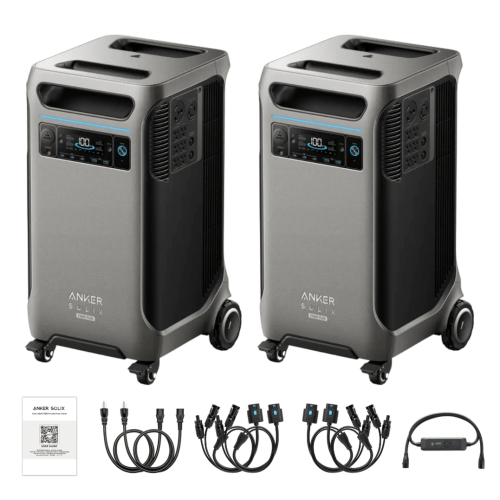

- Includes Two Anker SOLIX F3800 Plus Portable Power Stations And One Double Power Hub
- Delivers Massive 7,680Wh Combined Energy Storage Capacity
- Provides Up To 12,000W Continuous Output When Units Operate Through The Double Power Hub
- Supports Both 120V And 240V Applications For Whole-Home Backup Power
- Ideal For HVAC Systems, Well Pumps, Electric Vehicle Charging, And Heavy-Duty Equipment
- Advanced LiFePO4 Battery Technology Provides 3,000+ Charge Cycles
- Dual MPPT Solar Controllers Support Up To 6,400W Combined Solar Input
- Expandable With Additional BP3800 Expansion Batteries For Increased Runtime
- Seamless Integration With Smart Home Power Panels And Transfer Switches
- Generator Bypass Charging Supports Fast System Recharging
- Built-In Wi-Fi And Bluetooth Connectivity For Remote Monitoring And Control
- Smart Energy Management Through The Anker SOLIX Mobile App
- Pure Sine Wave Output Protects Sensitive Electronics And Appliances

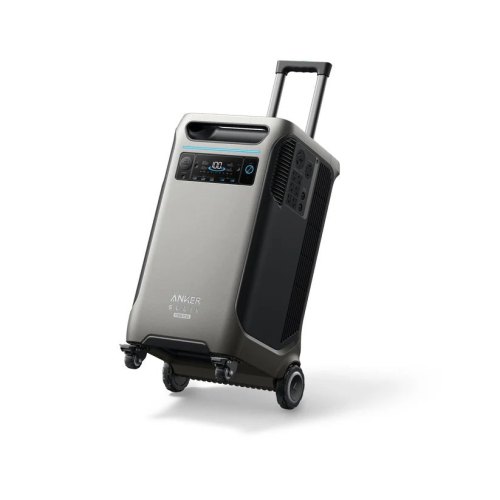

- Portable Design With Integrated Wheels And Retractable Handles
- Suitable For Home Backup, Off-Grid Living, RV Use, Emergency Response, And Mobile Power Applications
Specifications
| System Configuration | 2 × F3800 Plus + Double Power Hub |
| Total Battery Capacity | 7,680Wh (7.68kWh) |
| Battery Chemistry | LiFePO4 (LFP) |
| Cycle Life | 3,000+ Cycles |
| Continuous Output Power | 12,000W Combined |
| Surge Output | 18,000W Peak |
| Output Voltage | 120V / 240V |
| Solar Input Capacity | 6,400W Combined |
| MPPT Controllers | 4 × 1,600W MPPT |
| Generator Charging | Supported |
| Connectivity | Wi-Fi & Bluetooth |
| Expandable Capacity | Up To 53.8kWh |
| Dimensions (Each F3800 Plus) | 27.6 x 15.3 x 15.6 in. |
| Weight (Each F3800 Plus) | 136.7 lbs |
| Total System Weight | 303.4 lbs |
Installation
- Position Both F3800 Plus Units On A Stable Surface With Adequate Ventilation
- Install The Double Power Hub Between The Two Power Stations
- Connect Each F3800 Plus To The Double Power Hub Using Approved Anker Connection Cables
- Verify Successful System Pairing Through The LCD Displays Or Mobile App
- Connect Solar Arrays To Available MPPT Inputs Following Voltage Specifications
- Configure Smart Monitoring Through The Anker SOLIX Application
- Connect To A Transfer Switch Or Smart Home Panel For Whole-Home Backup Applications
- Inspect All Electrical Connections And Confirm Proper Grounding Before Startup
- Follow Manufacturer Guidelines And Local Electrical Codes During Installation
- Professional Installation Recommended For Residential Backup Power Systems
Anker SOLIX 2 x F3800 Plus Portable Power Station + Double Power Hub
- Product Code: B17901122
Features
- Includes Two Anker SOLIX F3800 Plus Portable Power Stations And One Double Power Hub
- Delivers Massive 7,680Wh Combined Energy Storage Capacity
- Provides Up To 12,000W Continuous Output When Units Operate Through The Double Power Hub
- Supports Both 120V And 240V Applications For Whole-Home Backup Power
- Ideal For HVAC Systems, Well Pumps, Electric Vehicle Charging, And Heavy-Duty Equipment
- Advanced LiFePO4 Battery Technology Provides 3,000+ Charge Cycles
- Dual MPPT Solar Controllers Support Up To 6,400W Combined Solar Input
- Expandable With Additional BP3800 Expansion Batteries For Increased Runtime
- Seamless Integration With Smart Home Power Panels And Transfer Switches
- Generator Bypass Charging Supports Fast System Recharging
- Built-In Wi-Fi And Bluetooth Connectivity For Remote Monitoring And Control
- Smart Energy Management Through The Anker SOLIX Mobile App
- Pure Sine Wave Output Protects Sensitive Electronics And Appliances
- Portable Design With Integrated Wheels And Retractable Handles
- Suitable For Home Backup, Off-Grid Living, RV Use, Emergency Response, And Mobile Power Applications
Specifications
| System Configuration | 2 × F3800 Plus + Double Power Hub |
| Total Battery Capacity | 7,680Wh (7.68kWh) |
| Battery Chemistry | LiFePO4 (LFP) |
| Cycle Life | 3,000+ Cycles |
| Continuous Output Power | 12,000W Combined |
| Surge Output | 18,000W Peak |
| Output Voltage | 120V / 240V |
| Solar Input Capacity | 6,400W Combined |
| MPPT Controllers | 4 × 1,600W MPPT |
| Generator Charging | Supported |
| Connectivity | Wi-Fi & Bluetooth |
| Expandable Capacity | Up To 53.8kWh |
| Dimensions (Each F3800 Plus) | 27.6 x 15.3 x 15.6 in. |
| Weight (Each F3800 Plus) | 136.7 lbs |
| Total System Weight | 303.4 lbs |
Installation
- Position Both F3800 Plus Units On A Stable Surface With Adequate Ventilation
- Install The Double Power Hub Between The Two Power Stations
- Connect Each F3800 Plus To The Double Power Hub Using Approved Anker Connection Cables
- Verify Successful System Pairing Through The LCD Displays Or Mobile App
- Connect Solar Arrays To Available MPPT Inputs Following Voltage Specifications
- Configure Smart Monitoring Through The Anker SOLIX Application
- Connect To A Transfer Switch Or Smart Home Panel For Whole-Home Backup Applications
- Inspect All Electrical Connections And Confirm Proper Grounding Before Startup
- Follow Manufacturer Guidelines And Local Electrical Codes During Installation
- Professional Installation Recommended For Residential Backup Power Systems
- Brand: ANKER
- SKU: B17901122
- Viewed: 19
- Availability: In Stock
$4,408.00
