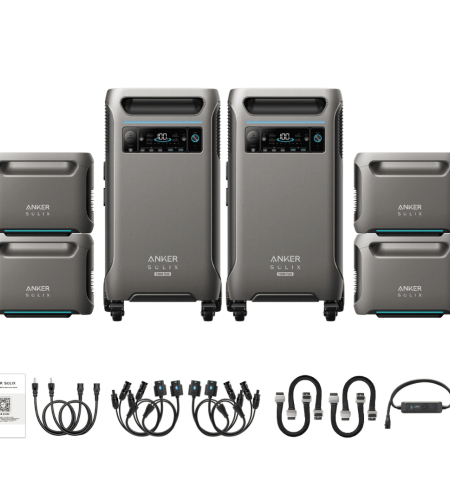

![[Double Kit] Anker SOLIX F3800 Plus + 4 x BP3800 Batteries](https://samsondi.com/image/cache/catalog/productupload1/4%20x%20BP3800%20Batteries-500x500.jpg "[Double Kit] Anker SOLIX F3800 Plus + 4 x BP3800 Batteries")
Features
- Complete Backup Power Solution Featuring One Anker SOLIX F3800 Plus And Four BP3800 Expansion Batteries
- Massive 19.2kWh Total Energy Storage Capacity For Extended Runtime
- 6000-Watt Continuous Pure Sine Wave Output With Surge Capability For Heavy Loads
- Supports 120V And 240V Appliances Including HVAC Systems, Well Pumps, And Power Tools
- Advanced LiFePO4 Battery Technology Provides 3,000+ Charge Cycles
- Dual MPPT Solar Charging Controllers Support Up To 3200W Solar Input
- Expandable System Design Allows Additional Energy Storage Capacity
- Compatible With Smart Home Power Kit For Whole-Home Backup Integration
- Generator Bypass Charging Supports Up To 6000W Input
- Built-In Wi-Fi And Bluetooth Connectivity For Remote Monitoring
- Smart Energy Management Through The Anker Mobile App
- Integrated Battery Management System Protects Against Overcharge, Overload, And Overheating
- EV Charging Capability Through NEMA 14-50 Outlet
- RV Ready Design With Dedicated TT-30 Output
- Ideal For Home Backup, Off-Grid Living, Emergency Preparedness, And Mobile Power Applications
Specifications
| Total Battery Capacity | 19,200Wh (19.2kWh) |
| Base Unit Capacity | 3,840Wh |
| Expansion Battery Capacity | 4 × 3,840Wh |
| Battery Chemistry | LiFePO4 (LFP) |
| Cycle Life | 3,000+ Cycles |
| AC Output Power | 6,000W Continuous |
| Peak Surge Output | 9,000W |
| Output Voltage | 120V / 240V |
| Solar Input Power | 3,200W Maximum |
| MPPT Controllers | Dual 1,600W MPPT |
| Solar Voltage Range | 11V–165V |
| Generator Charging | Up To 6,000W |
| Connectivity | Wi-Fi & Bluetooth |
| Dimensions (F3800 Plus) | 27.6 x 15.3 x 15.6 in. |
| Weight (F3800 Plus) | 136.7 lbs |
| Total System Weight | 427.9 lbs |
Installation
- Place The F3800 Plus On A Stable Surface With Adequate Ventilation
- Position The Four BP3800 Expansion Batteries Adjacent To The Main Unit
- Connect Each Expansion Battery Using Official Anker Expansion Cables
- Verify Battery Recognition Through The LCD Display Or Anker App
- Connect Solar Panels To The Dual MPPT Inputs Within Voltage Specifications
- Configure Monitoring And System Settings Using Wi-Fi Or Bluetooth Connectivity
- For Whole-Home Backup, Connect Through The Anker Smart Home Power Kit Or Transfer Switch
- Confirm Proper Grounding And Circuit Protection Before System Operation
- Follow Manufacturer Instructions And Local Electrical Codes During Installation
[Double Kit] Anker SOLIX F3800 Plus + 4 x BP3800 Batteries
- Product Code: 2-F3800-4-BP3800
Features
- Complete Backup Power Solution Featuring One Anker SOLIX F3800 Plus And Four BP3800 Expansion Batteries
- Massive 19.2kWh Total Energy Storage Capacity For Extended Runtime
- 6000-Watt Continuous Pure Sine Wave Output With Surge Capability For Heavy Loads
- Supports 120V And 240V Appliances Including HVAC Systems, Well Pumps, And Power Tools
- Advanced LiFePO4 Battery Technology Provides 3,000+ Charge Cycles
- Dual MPPT Solar Charging Controllers Support Up To 3200W Solar Input
- Expandable System Design Allows Additional Energy Storage Capacity
- Compatible With Smart Home Power Kit For Whole-Home Backup Integration
- Generator Bypass Charging Supports Up To 6000W Input
- Built-In Wi-Fi And Bluetooth Connectivity For Remote Monitoring
- Smart Energy Management Through The Anker Mobile App
- Integrated Battery Management System Protects Against Overcharge, Overload, And Overheating
- EV Charging Capability Through NEMA 14-50 Outlet
- RV Ready Design With Dedicated TT-30 Output
- Ideal For Home Backup, Off-Grid Living, Emergency Preparedness, And Mobile Power Applications
Specifications
| Total Battery Capacity | 19,200Wh (19.2kWh) |
| Base Unit Capacity | 3,840Wh |
| Expansion Battery Capacity | 4 × 3,840Wh |
| Battery Chemistry | LiFePO4 (LFP) |
| Cycle Life | 3,000+ Cycles |
| AC Output Power | 6,000W Continuous |
| Peak Surge Output | 9,000W |
| Output Voltage | 120V / 240V |
| Solar Input Power | 3,200W Maximum |
| MPPT Controllers | Dual 1,600W MPPT |
| Solar Voltage Range | 11V–165V |
| Generator Charging | Up To 6,000W |
| Connectivity | Wi-Fi & Bluetooth |
| Dimensions (F3800 Plus) | 27.6 x 15.3 x 15.6 in. |
| Weight (F3800 Plus) | 136.7 lbs |
| Total System Weight | 427.9 lbs |
Installation
- Place The F3800 Plus On A Stable Surface With Adequate Ventilation
- Position The Four BP3800 Expansion Batteries Adjacent To The Main Unit
- Connect Each Expansion Battery Using Official Anker Expansion Cables
- Verify Battery Recognition Through The LCD Display Or Anker App
- Connect Solar Panels To The Dual MPPT Inputs Within Voltage Specifications
- Configure Monitoring And System Settings Using Wi-Fi Or Bluetooth Connectivity
- For Whole-Home Backup, Connect Through The Anker Smart Home Power Kit Or Transfer Switch
- Confirm Proper Grounding And Circuit Protection Before System Operation
- Follow Manufacturer Instructions And Local Electrical Codes During Installation
- Brand: ANKER
- SKU: 2-F3800-4-BP3800
- Viewed: 18
- Availability: In Stock
$8,494.00
Tags:Anker SOLIXF3800 PlusBP3800Expansion BatteryHome Backup PowerSolar GeneratorPortable Power StationLiFePO4 BatteryWhole Home BackupEmergency PowerEnergy Storage SystemOff Grid PowerSolar Battery StorageSmart Home BackupEnergy Independence
