Features
- Complete Home Backup Package Including Anker SOLIX F3800, BP3800 Expansion Battery, And Smart Home Power Kit
- Provides 7,680Wh Total Battery Capacity For Extended Backup Runtime
- 6000W Continuous AC Output With 9000W Surge Capacity
- Supports Both 120V And 240V Split-Phase Power Applications
- Ideal For Refrigerators, HVAC Systems, Well Pumps, EV Charging, And Essential Home Loads
- BP3800 Expansion Battery Doubles Energy Storage Capacity From 3.84kWh To 7.68kWh
- Smart Home Power Kit Enables Automatic Backup Power Transfer During Outages
- Advanced LiFePO4 Battery Technology Delivers 3,000+ Charge Cycles
- Supports Up To 2400W Solar Input Through Dual MPPT Charge Controllers
- Integrated UPS Functionality With Fast Switchover Protection
- Expandable System Supports Additional BP3800 Batteries For Increased Runtime
- Wi-Fi And Bluetooth Connectivity For Remote Monitoring And Control
- Real-Time Energy Tracking Through The Anker SOLIX Mobile Application
- Pure Sine Wave Inverter Protects Sensitive Electronics
- Perfect For Home Backup, Emergency Preparedness, RV Use, And Off-Grid Applications
Specifications
| System Configuration | F3800 + BP3800 + Smart Home Power Kit |
| Total Battery Capacity | 7,680Wh (7.68kWh) |
| Base Capacity | 3,840Wh |
| Expansion Battery Capacity | 3,840Wh |
| Battery Chemistry | LiFePO4 (LFP) |
| Cycle Life | 3,000+ Cycles |
| Continuous Output | 6,000W |
| Surge Output | 9,000W |
| Output Voltage | 120V / 240V Split Phase |
| Solar Input Capacity | 2,400W |
| MPPT Controllers | Dual MPPT |
| UPS Transfer Time | <20ms |
| Connectivity | Wi-Fi & Bluetooth |
| Weight (F3800) | 146.7 lbs |
| Total System Weight | 251.5 lbs |
Installation
- Place The F3800 And BP3800 Expansion Battery On A Stable Surface With Proper Ventilation
- Connect The Expansion Battery To The F3800 Using The Included Expansion Battery Cable
- Install The Smart Home Power Kit Near The Main Electrical Service Panel
- Connect The F3800 To The Smart Home Power Kit Following Anker Installation Guidelines
- Connect Solar Panels To The Dual MPPT Inputs If Renewable Charging Is Desired
- Configure Backup Circuits Through The Smart Home Power Kit Interface
- Pair The System With The Anker SOLIX Mobile App For Monitoring And Control
- Verify Proper Grounding, Breaker Protection, And Communication Connections
- Perform Backup Power Testing Before Placing The System Into Service
- Professional Installation Recommended For Whole-Home Backup Applications

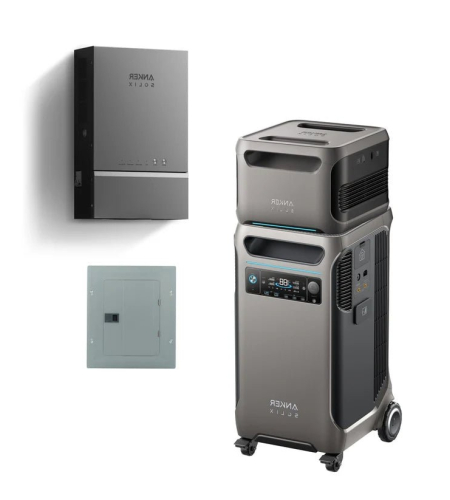

Anker SOLIX F3800 + Expansion Battery + Smart Home Power Kit
- Product Code: B1790116
Features
- Complete Home Backup Package Including Anker SOLIX F3800, BP3800 Expansion Battery, And Smart Home Power Kit
- Provides 7,680Wh Total Battery Capacity For Extended Backup Runtime
- 6000W Continuous AC Output With 9000W Surge Capacity
- Supports Both 120V And 240V Split-Phase Power Applications
- Ideal For Refrigerators, HVAC Systems, Well Pumps, EV Charging, And Essential Home Loads
- BP3800 Expansion Battery Doubles Energy Storage Capacity From 3.84kWh To 7.68kWh
- Smart Home Power Kit Enables Automatic Backup Power Transfer During Outages
- Advanced LiFePO4 Battery Technology Delivers 3,000+ Charge Cycles
- Supports Up To 2400W Solar Input Through Dual MPPT Charge Controllers
- Integrated UPS Functionality With Fast Switchover Protection
- Expandable System Supports Additional BP3800 Batteries For Increased Runtime
- Wi-Fi And Bluetooth Connectivity For Remote Monitoring And Control
- Real-Time Energy Tracking Through The Anker SOLIX Mobile Application
- Pure Sine Wave Inverter Protects Sensitive Electronics
- Perfect For Home Backup, Emergency Preparedness, RV Use, And Off-Grid Applications
Specifications
| System Configuration | F3800 + BP3800 + Smart Home Power Kit |
| Total Battery Capacity | 7,680Wh (7.68kWh) |
| Base Capacity | 3,840Wh |
| Expansion Battery Capacity | 3,840Wh |
| Battery Chemistry | LiFePO4 (LFP) |
| Cycle Life | 3,000+ Cycles |
| Continuous Output | 6,000W |
| Surge Output | 9,000W |
| Output Voltage | 120V / 240V Split Phase |
| Solar Input Capacity | 2,400W |
| MPPT Controllers | Dual MPPT |
| UPS Transfer Time | <20ms |
| Connectivity | Wi-Fi & Bluetooth |
| Weight (F3800) | 146.7 lbs |
| Total System Weight | 251.5 lbs |
Installation
- Place The F3800 And BP3800 Expansion Battery On A Stable Surface With Proper Ventilation
- Connect The Expansion Battery To The F3800 Using The Included Expansion Battery Cable
- Install The Smart Home Power Kit Near The Main Electrical Service Panel
- Connect The F3800 To The Smart Home Power Kit Following Anker Installation Guidelines
- Connect Solar Panels To The Dual MPPT Inputs If Renewable Charging Is Desired
- Configure Backup Circuits Through The Smart Home Power Kit Interface
- Pair The System With The Anker SOLIX Mobile App For Monitoring And Control
- Verify Proper Grounding, Breaker Protection, And Communication Connections
- Perform Backup Power Testing Before Placing The System Into Service
- Professional Installation Recommended For Whole-Home Backup Applications
- Brand: ANKER
- SKU: B1790116
- Viewed: 17
- Availability: In Stock
$3,908.00
