When your operation demands high-capacity, reliable power in a PTO-driven package built for the toughest environments, the WINCO W85PTOS-21 steps up with industrial-grade performance and professional-level durability. Designed for agricultural, commercial, and remote-site use, this generator converts your tractor’s PTO output into clean, utility-quality three-phase power — ready for major loads, continuous duty, and full-system support.

Operating at a 1000 RPM PTO input, the W85PTOS-21 delivers 85 kW of continuous power at 346/600 V three-phase, giving you serious output for large motors, facility systems, or critical standby loads. Its brushless alternator design, paired with Winco’s cast-iron gearcase and helical gearing, ensures long-term mechanical strength and minimal maintenance. A large 3½-inch frequency meter helps you monitor PTO speed and maintain a true 60 Hz output, while premium circuit breakers and a protective PTO shield enhance safety and serviceability. The model is also 100 % factory load-tested before shipment — no statistical sampling here — giving you confidence in real-world performance.

Backed by Winco’s American engineering and rugged build, the W85PTOS-21 is ideal for facilities where power reliability is non-negotiable. Whether you’re powering grain dryers, irrigation systems, backup panels, or remote job-site loads, this generator gives you the capacity, robustness, and clean output to keep operations running smoothly.


Product Specifications

Model Number
W85PTOS-21
Manufacturer
WINCO
Made In USA
Yes
Rated Output
85 kW
Voltage
346/600V 3-Phase
Continuous Amps
79A @ 1.0 PF / 100A @ 0.8 PF
Standby Amps
84A @ 1.0 PF / 105A @ 0.8 PF
Type
Tractor PTO Generator

Features

Voltage Regulation
Automatic Voltage Regulator (AVR)
Low Harmonic Distortion
Yes
Frequency Meter
Large 3-1/2" Meter
Circuit Breakers
Premium Industrial Grade
PTO Shield
Protective Safety Shield Included
Anderson Connector
175 Amp Full Power Connector Included
Load Tested
100% Factory Tested

Dimensions

Length
49"
Width
18"
Height
27"
Weight
1,056 lbs

PTO Requirements

PTO Input Speed
1000 RPM
Required Tractor PTO HP
176 HP
Input Shaft Size
1-3/8" 6-Spline

Alternator

Alternator Type
Brushless
Frequency
60 Hz
Voltage Regulation
AVR

Warranty

Consumer Warranty
3 Year Limited

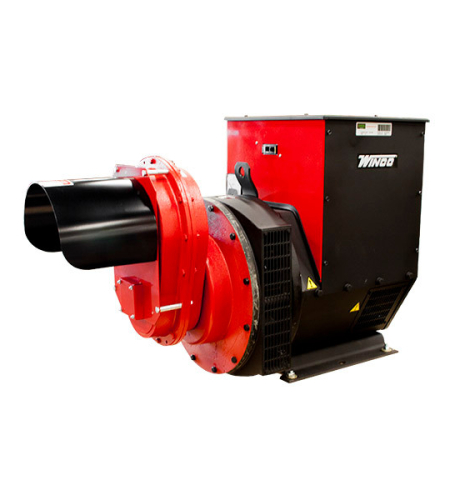

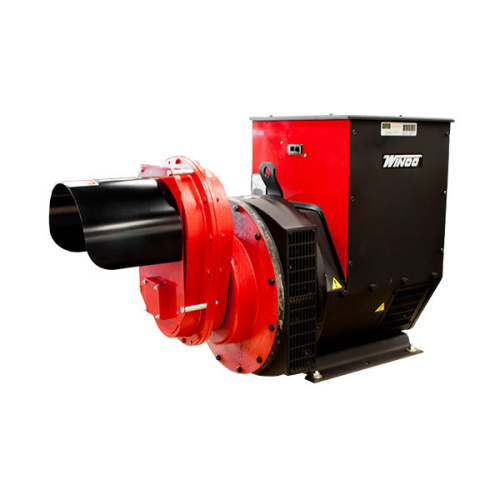

WINCO W85PTOS-21 85kW 3ph-346/600V 1000 RPM PTO Generator

  • Product Code: 64868-019

When your operation demands high-capacity, reliable power in a PTO-driven package built for the toughest environments, the WINCO W85PTOS-21 steps up with industrial-grade performance and professional-level durability. Designed for agricultural, commercial, and remote-site use, this generator converts your tractor’s PTO output into clean, utility-quality three-phase power — ready for major loads, continuous duty, and full-system support.

Operating at a 1000 RPM PTO input, the W85PTOS-21 delivers 85 kW of continuous power at 346/600 V three-phase, giving you serious output for large motors, facility systems, or critical standby loads. Its brushless alternator design, paired with Winco’s cast-iron gearcase and helical gearing, ensures long-term mechanical strength and minimal maintenance. A large 3½-inch frequency meter helps you monitor PTO speed and maintain a true 60 Hz output, while premium circuit breakers and a protective PTO shield enhance safety and serviceability. The model is also 100 % factory load-tested before shipment — no statistical sampling here — giving you confidence in real-world performance.

Backed by Winco’s American engineering and rugged build, the W85PTOS-21 is ideal for facilities where power reliability is non-negotiable. Whether you’re powering grain dryers, irrigation systems, backup panels, or remote job-site loads, this generator gives you the capacity, robustness, and clean output to keep operations running smoothly.


Product Specifications

Model Number
W85PTOS-21
Manufacturer
WINCO
Made In USA
Yes
Rated Output
85 kW
Voltage
346/600V 3-Phase
Continuous Amps
79A @ 1.0 PF / 100A @ 0.8 PF
Standby Amps
84A @ 1.0 PF / 105A @ 0.8 PF
Type
Tractor PTO Generator

Features

Voltage Regulation
Automatic Voltage Regulator (AVR)
Low Harmonic Distortion
Yes
Frequency Meter
Large 3-1/2" Meter
Circuit Breakers
Premium Industrial Grade
PTO Shield
Protective Safety Shield Included
Anderson Connector
175 Amp Full Power Connector Included
Load Tested
100% Factory Tested

Dimensions

Length
49"
Width
18"
Height
27"
Weight
1,056 lbs

PTO Requirements

PTO Input Speed
1000 RPM
Required Tractor PTO HP
176 HP
Input Shaft Size
1-3/8" 6-Spline

Alternator

Alternator Type
Brushless
Frequency
60 Hz
Voltage Regulation
AVR

Warranty

Consumer Warranty
3 Year Limited
  • Brand: Winco
  • SKU: 64868-019
  • Viewed: 57
  • Availability: In Stock
Winco

$9,954.00
