The WINCO 55PTOT4-18 55kW 3-Phase 277/480V PTO Generator is built to provide commercial-grade power wherever it’s needed — from farms and job sites to industrial facilities. Engineered and assembled in the USA, this unit converts your tractor’s horsepower into clean, stable, utility-quality electricity for heavy-duty operations, irrigation systems, or complete facility backup.

Operating at 1000 RPM PTO input, the 55PTOT4-18 produces 55,000 surge watts and 46,400 continuous watts at 277/480V three-phase, requiring a 110 HP tractor for full rated performance. Its brushless industrial generator end features an AS440 automatic voltage regulator (±1%) and delivers power with less than 5% total harmonic distortion (THD) — ensuring dependable, consistent output for sensitive electronics and demanding equipment alike.

Built on Winco’s time-tested cast-iron gearcase, trusted for over 60 years of proven reliability, this generator is designed for durability and long-term performance. The double-layer concentric stator winding, 2/3-pitch rotor, and Class H insulation ensure superior heat resistance and electrical efficiency. The large 3.5-inch frequency meter provides real-time RPM monitoring for precise 60 Hz operation, while the rugged IP23-rated enclosure withstands the elements for extended service life.

For power delivery, the 55PTOT4-18 includes a 350A full-power Anderson receptacle (plug included), ensuring reliable, high-capacity connectivity. A bonded neutral, ground lug, and standard frequency meter ensure safe and compliant operation. Compatible with Category 2 three-point hitches or PTO trailer kits, this unit offers flexible deployment options. 100% load-tested at the Winco factory and backed by a 3-year commercial warranty, this PTO generator delivers the performance professionals rely on year after year.

Product Specifications

Model Number
55PTOT4-18
Manufacturer
WINCO
SKU / UPC
205514-181
Made In USA
Yes
Standby Output
55,000 Watts
Continuous Output
46,400 Watts
Voltage
277/480V Three-Phase
Type
Tractor PTO Generator

Features

Gearcase Design
Cast Iron Gearcase With Proven Durability
Low Harmonic Distortion
Less Than 5% THD
Frequency Meter
Large 3.5" Frequency Meter
Circuit Breakers
Premium Industrial Grade
PTO Shield
Protective Safety Shield Included
Full Power Connector
5-Wire Anderson Plug Included
Factory Testing
100% Load Tested Prior To Shipment

Dimensions

Length
41"
Width
20"
Height
27"
Weight
745 lbs

PTO Requirements

PTO Input Speed
1000 RPM
Required Tractor PTO HP
110 HP
PTO Shaft
1-3/8" 6-Spline

Alternator

Alternator Type
Brushless Industrial Alternator
Frequency
60 Hz
Voltage Regulation
AS440 AVR (±1%)
Continuous Amps
55 @ 1.0 PF / 69 @ 0.8 PF
Standby Amps
66 @ 1.0 PF / 82 @ 0.8 PF
Power Connector
350 Amp Anderson Receptacle

Warranty

Consumer Warranty
3 Year Limited Warranty

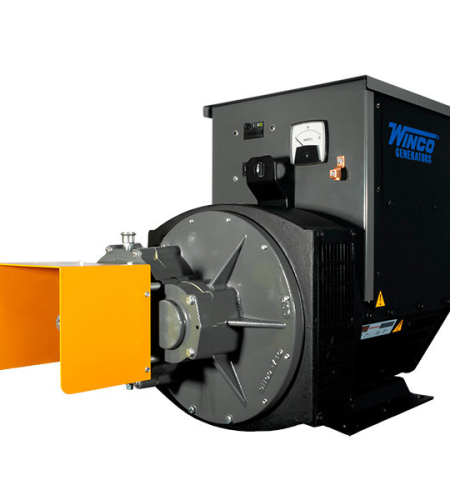

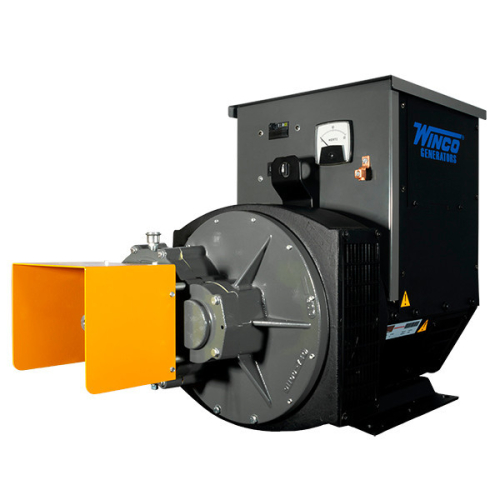

WINCO 55PTOT4-18 55kW 3ph-277/480V 1000 RPM PTO Generator

  • Product Code: 205514-181

The WINCO 55PTOT4-18 55kW 3-Phase 277/480V PTO Generator is built to provide commercial-grade power wherever it’s needed — from farms and job sites to industrial facilities. Engineered and assembled in the USA, this unit converts your tractor’s horsepower into clean, stable, utility-quality electricity for heavy-duty operations, irrigation systems, or complete facility backup.

Operating at 1000 RPM PTO input, the 55PTOT4-18 produces 55,000 surge watts and 46,400 continuous watts at 277/480V three-phase, requiring a 110 HP tractor for full rated performance. Its brushless industrial generator end features an AS440 automatic voltage regulator (±1%) and delivers power with less than 5% total harmonic distortion (THD) — ensuring dependable, consistent output for sensitive electronics and demanding equipment alike.

Built on Winco’s time-tested cast-iron gearcase, trusted for over 60 years of proven reliability, this generator is designed for durability and long-term performance. The double-layer concentric stator winding, 2/3-pitch rotor, and Class H insulation ensure superior heat resistance and electrical efficiency. The large 3.5-inch frequency meter provides real-time RPM monitoring for precise 60 Hz operation, while the rugged IP23-rated enclosure withstands the elements for extended service life.

For power delivery, the 55PTOT4-18 includes a 350A full-power Anderson receptacle (plug included), ensuring reliable, high-capacity connectivity. A bonded neutral, ground lug, and standard frequency meter ensure safe and compliant operation. Compatible with Category 2 three-point hitches or PTO trailer kits, this unit offers flexible deployment options. 100% load-tested at the Winco factory and backed by a 3-year commercial warranty, this PTO generator delivers the performance professionals rely on year after year.

Product Specifications

Model Number
55PTOT4-18
Manufacturer
WINCO
SKU / UPC
205514-181
Made In USA
Yes
Standby Output
55,000 Watts
Continuous Output
46,400 Watts
Voltage
277/480V Three-Phase
Type
Tractor PTO Generator

Features

Gearcase Design
Cast Iron Gearcase With Proven Durability
Low Harmonic Distortion
Less Than 5% THD
Frequency Meter
Large 3.5" Frequency Meter
Circuit Breakers
Premium Industrial Grade
PTO Shield
Protective Safety Shield Included
Full Power Connector
5-Wire Anderson Plug Included
Factory Testing
100% Load Tested Prior To Shipment

Dimensions

Length
41"
Width
20"
Height
27"
Weight
745 lbs

PTO Requirements

PTO Input Speed
1000 RPM
Required Tractor PTO HP
110 HP
PTO Shaft
1-3/8" 6-Spline

Alternator

Alternator Type
Brushless Industrial Alternator
Frequency
60 Hz
Voltage Regulation
AS440 AVR (±1%)
Continuous Amps
55 @ 1.0 PF / 69 @ 0.8 PF
Standby Amps
66 @ 1.0 PF / 82 @ 0.8 PF
Power Connector
350 Amp Anderson Receptacle

Warranty

Consumer Warranty
3 Year Limited Warranty
  • Brand: Winco
  • SKU: 205514-181
  • Viewed: 55
  • Availability: In Stock
Winco

$7,678.00
