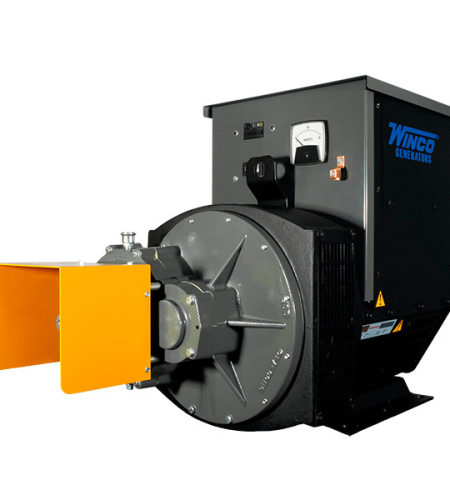

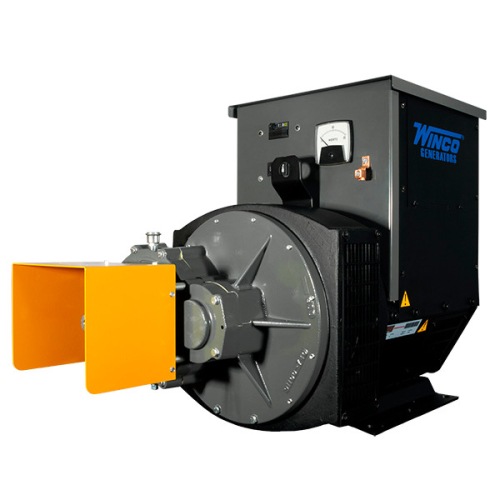

The WINCO 50PTOT4-17 50kW 3-Phase 120/240V PTO Generator is a powerful, American-made solution for agricultural, industrial, and commercial applications that demand dependable, continuous power. Designed for high-performance and durability, this generator converts your tractor’s PTO into utility-grade electricity capable of running heavy machinery, irrigation systems, or entire facilities.

Operating at 1000 RPM PTO input, the 50PTOT4-17 produces 50,000 surge watts and 42,000 continuous watts of clean, stable power at 120/240V three-phase, requiring a 100 HP tractor to reach full output. The brushless industrial generator end delivers precision voltage control with its AS440 automatic voltage regulator (±1%), ensuring consistent output with less than 5% total harmonic distortion (THD) — safe for both sensitive electronics and demanding motor loads.

Winco’s heavy-duty cast-iron gearcase, proven for over 60 years of reliability, provides exceptional mechanical strength and long service life. The double-layer concentric stator winding, 2/3-pitch rotor, and Class H insulation guarantee efficient electrical performance under continuous-duty conditions. Equipped with a 3.5-inch frequency meter, bonded neutral, and ground lug, the 50PTOT4-17 ensures accurate frequency monitoring and safe operation in all environments.

The power panel includes two NEMA 5-20 20A 120V duplex outlets, one NEMA 6-50 50A 240V outlet, and a 350A full-power Anderson receptacle (plug included), providing flexible connection options for any application. Compatible with Category 2 three-point hitches or PTO trailers, this generator is easy to mount and transport. Backed by Winco’s 3-year commercial warranty and proudly assembled in the USA, the 50PTOT4-17 stands as a reliable and cost-effective power solution for professionals who refuse to compromise.


Product Specifications

Model Number
50PTOT4-17
Manufacturer
WINCO
UPC
205017-171
Made In USA
Yes
Standby Output
50,000 Watts
Continuous Output
42,000 Watts
Voltage
120/240V Three-Phase
Frequency
60 Hz
Type
Tractor PTO Generator

Features

Gearcase Design
Heavy-Duty Cast Iron Gearcase
Low Harmonic Distortion
Less Than 5% THD
Frequency Meter
Large 3.5" Frequency Meter
Circuit Breakers
Industrial Grade Breakers
PTO Shield
Safety PTO Shield Included
Power Connection
350 Amp Anderson Receptacle
Factory Testing
100% Load Tested

Dimensions

Length
44"
Width
28"
Height
29"
Weight
745 lbs

PTO Requirements

PTO Input Speed
1000 RPM
Required Tractor PTO HP
100 HP
Input Shaft
1-3/8" 6-Spline

Alternator

Alternator Type
Brushless Industrial Alternator
Frequency
60 Hz
Voltage Regulation
AS440 AVR (±1%)
Continuous Amps
101 Amps
Standby Amps
120 Amps

Warranty

Consumer Warranty
3 Year Limited Warranty

WINCO 50PTOT4-17 50kW 3ph-120/240V 1000 RPM PTO Generator

  • Product Code: 205017-171

The WINCO 50PTOT4-17 50kW 3-Phase 120/240V PTO Generator is a powerful, American-made solution for agricultural, industrial, and commercial applications that demand dependable, continuous power. Designed for high-performance and durability, this generator converts your tractor’s PTO into utility-grade electricity capable of running heavy machinery, irrigation systems, or entire facilities.

Operating at 1000 RPM PTO input, the 50PTOT4-17 produces 50,000 surge watts and 42,000 continuous watts of clean, stable power at 120/240V three-phase, requiring a 100 HP tractor to reach full output. The brushless industrial generator end delivers precision voltage control with its AS440 automatic voltage regulator (±1%), ensuring consistent output with less than 5% total harmonic distortion (THD) — safe for both sensitive electronics and demanding motor loads.

Winco’s heavy-duty cast-iron gearcase, proven for over 60 years of reliability, provides exceptional mechanical strength and long service life. The double-layer concentric stator winding, 2/3-pitch rotor, and Class H insulation guarantee efficient electrical performance under continuous-duty conditions. Equipped with a 3.5-inch frequency meter, bonded neutral, and ground lug, the 50PTOT4-17 ensures accurate frequency monitoring and safe operation in all environments.

The power panel includes two NEMA 5-20 20A 120V duplex outlets, one NEMA 6-50 50A 240V outlet, and a 350A full-power Anderson receptacle (plug included), providing flexible connection options for any application. Compatible with Category 2 three-point hitches or PTO trailers, this generator is easy to mount and transport. Backed by Winco’s 3-year commercial warranty and proudly assembled in the USA, the 50PTOT4-17 stands as a reliable and cost-effective power solution for professionals who refuse to compromise.


Product Specifications

Model Number
50PTOT4-17
Manufacturer
WINCO
UPC
205017-171
Made In USA
Yes
Standby Output
50,000 Watts
Continuous Output
42,000 Watts
Voltage
120/240V Three-Phase
Frequency
60 Hz
Type
Tractor PTO Generator

Features

Gearcase Design
Heavy-Duty Cast Iron Gearcase
Low Harmonic Distortion
Less Than 5% THD
Frequency Meter
Large 3.5" Frequency Meter
Circuit Breakers
Industrial Grade Breakers
PTO Shield
Safety PTO Shield Included
Power Connection
350 Amp Anderson Receptacle
Factory Testing
100% Load Tested

Dimensions

Length
44"
Width
28"
Height
29"
Weight
745 lbs

PTO Requirements

PTO Input Speed
1000 RPM
Required Tractor PTO HP
100 HP
Input Shaft
1-3/8" 6-Spline

Alternator

Alternator Type
Brushless Industrial Alternator
Frequency
60 Hz
Voltage Regulation
AS440 AVR (±1%)
Continuous Amps
101 Amps
Standby Amps
120 Amps

Warranty

Consumer Warranty
3 Year Limited Warranty
  • Brand: Winco
  • SKU: 205017-171
  • Viewed: 61
  • Availability: In Stock
Winco

$7,507.00
