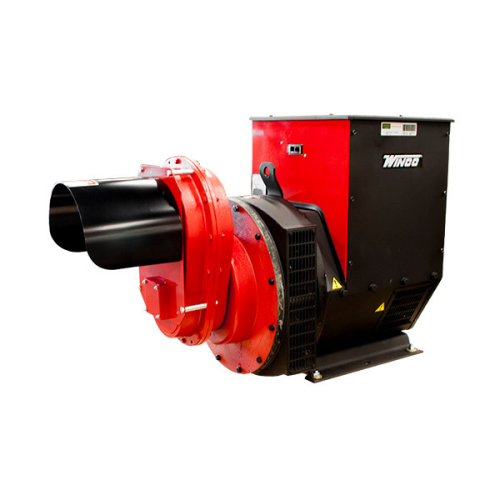

When your operation demands serious power and professional quality, the WINCO W75PTOS-4 steps into the spotlight. Built for contractors, farms, mobile workshops or backup-power setups, this PTO-driven generator converts your tractor or PTO source into a high-capacity, utility-grade power system you can trust. With 75 kW of continuous output in a rugged, purpose-built design, you get reliable energy for large tools, lighting systems, remote work sites or entire buildings.

This unit is engineered for performance. At 1000 RPM PTO input it generates three-phase 120/208 V output — giving you the versatility of three-phase power in field or mobile settings. With a brushless alternator design, low harmonic distortion for sensitive electronics, and a cast-iron gearcase with helical gearing for long life under load, the W75PTOS-4 delivers dependability where lesser systems fall short.

Transport and deployment are easier than you might expect for this capacity. The heavy duty frame, protective PTO shield, large 3½-inch frequency meter (so you can monitor your PTO speed and ensure 60 Hz output), and the full-power Anderson receptacle make setup clean and safe. Whether you are trailer-mounting it or installing it semi-permanently, you’ll appreciate the attention to detail and build quality.

If you’re ready to empower your operation with a PTO-driven generator that doesn’t compromise, the WINCO W75PTOS-4 is your solution — professional power, portable reliability, built to perform.

Features

75 kW continuous output, three-phase 120/208V power for demanding loads
1000 RPM PTO input designed to integrate with major tractors and PTO power sources
Brushless alternator design with low harmonic distortion for safe operation of electronics and motors
Cast-iron gearcase with helical gears provides rugged, quiet, and long-lasting performance
Large 3.5-inch frequency meter for accurate PTO speed and frequency monitoring
Protective PTO shield included for enhanced operator safety
Full-power Anderson receptacle included for heavy-duty power connection
100% factory load-tested to ensure reliable operation
Backed by a 3-year commercial warranty

Overview

Product Category
PTO Generator
Generator Features
Brushless Alternator, Low THD, Heavy-Duty Gearcase

Specifications

Voltage
120/208V
Phase
3-Phase
Frequency
60 Hz
Running Wattage
75,000 Watts
PTO Speed
1000 RPM

Alternator

Alternator Type
Brushless Alternator
Harmonic Distortion
Low THD

Gearcase

Gearcase Type
Cast-Iron with Helical Gears

Connections and Receptacles

Main Connection
Full-Power Anderson Receptacle
Safety Features
Protective PTO Shield

Warranty and Product Information

Factory Tested
100% Load Tested
Warranty
3-Year Commercial Warranty

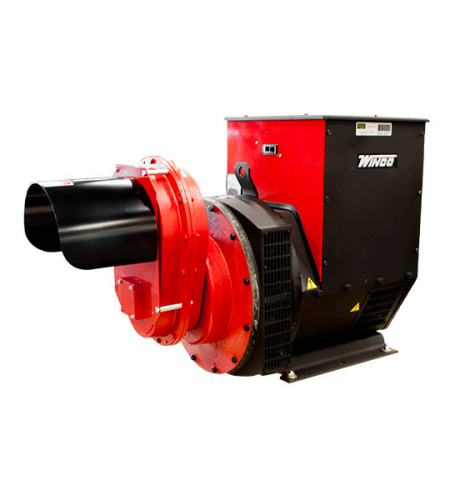

WINCO W75FPTOS-4 75kW 3ph-120/208V 1000 RPM PTO Generator
