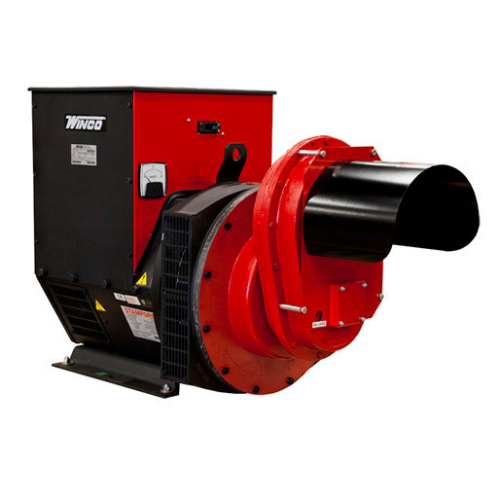

The WINCO W145PTOS-4 145kW 3-Phase 120/208V PTO Generator is the pinnacle of high-output, professional-grade power generation. Designed and assembled in the USA, this rugged and reliable model converts your tractor’s PTO horsepower into 145,000 continuous watts of clean, stable, three-phase electricity — ideal for agricultural, commercial, and industrial operations requiring uninterrupted, utility-quality power.

Operating at 1000 RPM PTO input, the W145PTOS-4 produces 503 amps at 120/208V, requiring a 290 HP tractor for full-rated performance. The brushless 4-pole rotating field alternator paired with a SX460 automatic voltage regulator (AVR) delivers precise ±1.5% voltage regulation and less than 5% total harmonic distortion (THD) — ensuring dependable operation for sensitive electronics and heavy machinery alike. Built with Class H insulation and rated at 125°C, this generator is engineered for continuous-duty service under demanding conditions.

The cast-iron gearcase with precision helical gears ensures smooth, quiet operation and superior torque handling. A large 3.5-inch frequency meter makes it easy to maintain proper PTO speed and 60 Hz output, while premium Square D circuit breakers provide industry-leading protection. Winco’s protective PTO shield, bonded neutral, and ground lug further enhance operational safety. Each unit is 100% load-tested at Winco’s Minnesota factory — not statistically sampled — guaranteeing dependable performance from the moment it arrives.

Connectivity is simple and versatile, with a NEMA 5-20 120V 20A duplex outlet, NEMA 6-50 240V 50A outlet, and a 500A main circuit breaker for full power delivery. The W145PTOS-4 includes a lifting eye for easy transport and is IP23-rated for weather and debris resistance. Backed by Winco’s 3-year farm-use warranty, this generator represents unmatched American durability and engineering — a true workhorse built for those who demand the best.


Features

145,000 continuous watts / 503 amps – 120/208V three-phase output
1000 RPM PTO input – requires 290 HP tractor
Brushless 4-pole rotating field alternator with SX460 AVR (±1.5%)
Less than 5% THD provides clean, utility-grade power for sensitive equipment
Class H insulation rated at 125°C for continuous-duty performance
Cast-iron gearcase with helical gears for smooth, durable, and quiet operation
Premium Square D circuit breakers provide reliable electrical protection
Large 3.5-inch frequency meter for accurate PTO speed control
Protective PTO shield, bonded neutral, and ground lug included
Includes NEMA 5-20 120V 20A duplex receptacle and NEMA 6-50 240V 50A receptacle
500A main breaker for dependable overcurrent protection
Uses SAE 85W 90–140 gearcase oil (2.75 pints capacity)
Optional PTO drive shaft, off-road trailer, and manual transfer switch available
Assembled and 100% load-tested in the USA
Backed by a 3-year farm-use warranty

Overview

Product Category
PTO Generator
Generator Features
Automatic Voltage Regulation, Low THD, Brushless Alternator
Product Weight
1494 lbs
Length
47"
Width
27"
Height
30.4"

Specifications

Voltage
120/208V
Phase
3-Phase
Frequency
60 Hz
Running Wattage
145,000 Watts
Amperage
503 Amps
PTO Speed
1000 RPM
Required Tractor HP
290 HP
Voltage Regulation
SX460 AVR (±1.5%)
Total Harmonic Distortion
Less Than 5%
Main Breaker
500A
Gearcase Oil Capacity
2.75 Pints

Alternator

Alternator Type
Brushless 4-Pole Rotating Field
Insulation Class
Class H (125°C)

Receptacles

120V Outlet
(1) NEMA 5-20 Duplex 20A
240V Outlet
(1) NEMA 6-50 50A

Warranty and Product Information

Country of Assembly
USA
Factory Tested
100% Load Tested
Warranty
3-Year Farm-Use Warranty

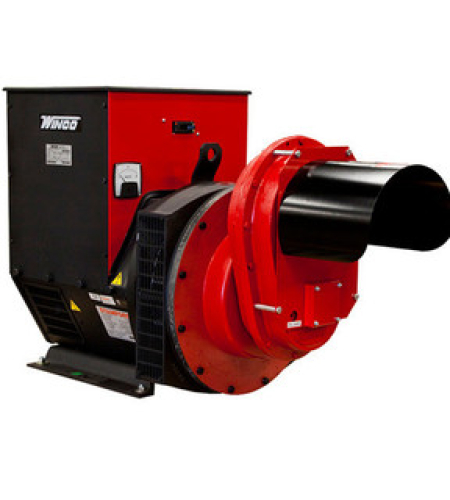

WINCO W145PTOS-4 145kW 3ph-120/208V 1000 RPM PTO Generator

  • Product Code: 64868-013

The WINCO W145PTOS-4 145kW 3-Phase 120/208V PTO Generator is the pinnacle of high-output, professional-grade power generation. Designed and assembled in the USA, this rugged and reliable model converts your tractor’s PTO horsepower into 145,000 continuous watts of clean, stable, three-phase electricity — ideal for agricultural, commercial, and industrial operations requiring uninterrupted, utility-quality power.

Operating at 1000 RPM PTO input, the W145PTOS-4 produces 503 amps at 120/208V, requiring a 290 HP tractor for full-rated performance. The brushless 4-pole rotating field alternator paired with a SX460 automatic voltage regulator (AVR) delivers precise ±1.5% voltage regulation and less than 5% total harmonic distortion (THD) — ensuring dependable operation for sensitive electronics and heavy machinery alike. Built with Class H insulation and rated at 125°C, this generator is engineered for continuous-duty service under demanding conditions.

The cast-iron gearcase with precision helical gears ensures smooth, quiet operation and superior torque handling. A large 3.5-inch frequency meter makes it easy to maintain proper PTO speed and 60 Hz output, while premium Square D circuit breakers provide industry-leading protection. Winco’s protective PTO shield, bonded neutral, and ground lug further enhance operational safety. Each unit is 100% load-tested at Winco’s Minnesota factory — not statistically sampled — guaranteeing dependable performance from the moment it arrives.

Connectivity is simple and versatile, with a NEMA 5-20 120V 20A duplex outlet, NEMA 6-50 240V 50A outlet, and a 500A main circuit breaker for full power delivery. The W145PTOS-4 includes a lifting eye for easy transport and is IP23-rated for weather and debris resistance. Backed by Winco’s 3-year farm-use warranty, this generator represents unmatched American durability and engineering — a true workhorse built for those who demand the best.


Features

145,000 continuous watts / 503 amps – 120/208V three-phase output
1000 RPM PTO input – requires 290 HP tractor
Brushless 4-pole rotating field alternator with SX460 AVR (±1.5%)
Less than 5% THD provides clean, utility-grade power for sensitive equipment
Class H insulation rated at 125°C for continuous-duty performance
Cast-iron gearcase with helical gears for smooth, durable, and quiet operation
Premium Square D circuit breakers provide reliable electrical protection
Large 3.5-inch frequency meter for accurate PTO speed control
Protective PTO shield, bonded neutral, and ground lug included
Includes NEMA 5-20 120V 20A duplex receptacle and NEMA 6-50 240V 50A receptacle
500A main breaker for dependable overcurrent protection
Uses SAE 85W 90–140 gearcase oil (2.75 pints capacity)
Optional PTO drive shaft, off-road trailer, and manual transfer switch available
Assembled and 100% load-tested in the USA
Backed by a 3-year farm-use warranty

Overview

Product Category
PTO Generator
Generator Features
Automatic Voltage Regulation, Low THD, Brushless Alternator
Product Weight
1494 lbs
Length
47"
Width
27"
Height
30.4"

Specifications

Voltage
120/208V
Phase
3-Phase
Frequency
60 Hz
Running Wattage
145,000 Watts
Amperage
503 Amps
PTO Speed
1000 RPM
Required Tractor HP
290 HP
Voltage Regulation
SX460 AVR (±1.5%)
Total Harmonic Distortion
Less Than 5%
Main Breaker
500A
Gearcase Oil Capacity
2.75 Pints

Alternator

Alternator Type
Brushless 4-Pole Rotating Field
Insulation Class
Class H (125°C)

Receptacles

120V Outlet
(1) NEMA 5-20 Duplex 20A
240V Outlet
(1) NEMA 6-50 50A

Warranty and Product Information

Country of Assembly
USA
Factory Tested
100% Load Tested
Warranty
3-Year Farm-Use Warranty
  • Brand: Winco
  • SKU: 64868-013
  • Viewed: 51
  • Availability: In Stock
Winco

$18,314.00
