Features
- 430-Watt High-Output Bifacial Solar Panel For Residential, Commercial, And Agricultural Applications
- N-Type TOPCon Cell Technology Delivers 10-30% Higher Energy Yield Than Conventional P-Type Modules
- 22.0% Module Efficiency With +5W Positive Power Tolerance
- Bifacial Design Produces Up To 25% Additional Energy From Reflected Rear-Side Light
- 80%+ Bifaciality Factor Maximizes Energy Harvest Throughout The Day
- Zero Light-Induced Degradation (LID) With Only 1% First-Year Power Loss
- Passivated Contact Design Minimizes Long-Term Power Degradation
- Dual-Glass Construction Provides Exceptional Durability And Light Transmission
- Excellent High-Temperature Performance With -0.30%/°C Temperature Coefficient
- Certified For 5400Pa Snow Loads And 2400Pa Wind Loads
- IP68-Rated Waterproof Junction Box For Harsh Outdoor Environments
- MC4-Compatible Connectors Enable Fast Plug-And-Play Installation
- Suitable For Grid-Tied, Off-Grid, BIPV, And Ground-Mounted Solar Systems
- 12-Year Product Warranty And 30-Year Linear Power Output Warranty
Specifications
| Maximum Power (Pmax) | 430W |
| Module Efficiency | 22.0% |
| Maximum Power Voltage (Vmp) | 31.9V |
| Maximum Power Current (Imp) | 13.5A |
| Open Circuit Voltage (Voc) | 37.4V |
| Short Circuit Current (Isc) | 14.7A |
| Maximum System Voltage | 1500VDC |
| Maximum Series Fuse Rating | 30A |
| Cell Technology | N-Type TOPCon |
| Cell Count | 108 Cells |
| Module Type | Bifacial |
| Front Glass | 2.0 mm Tempered Glass |
| Frame Material | Anodized Aluminum Alloy |
| Operating Temperature | -40°F To 185°F |
| Panel Cable Length | ≈ 47 in. |
| Dimensions | 67.8 x 44.7 x 1.2 in. |
| Weight | 50.9 lbs |
Installation
- MC4-Compatible Connectors Provide Fast Plug-And-Play Installation
- Suitable For Ground Mount, Roof Mount, Vertical Mounting, And BIPV Applications
- Install In Areas With Maximum Sun Exposure And Minimal Shading
- Compatible With Grid-Tied And Off-Grid Solar Power Systems
- Verify Correct Polarity Before Connecting To Charge Controllers Or Inverters
- Use Approved Mounting Hardware Rated For Local Wind And Snow Conditions
- Follow National And Local Electrical Codes During Installation

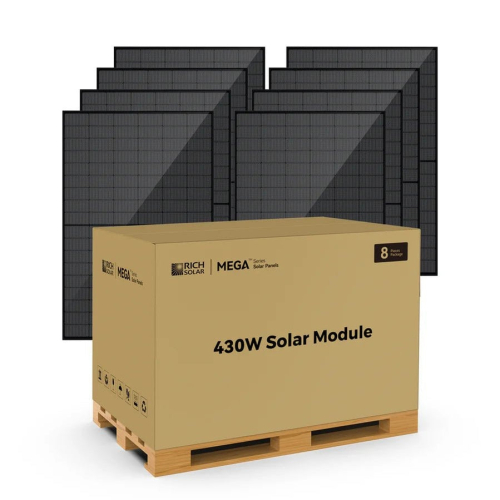

Rich Solar MEGA 430W Bifacial N-Type Solar Panel
- Product Code: RS-M430BF-8
Features
- 430-Watt High-Output Bifacial Solar Panel For Residential, Commercial, And Agricultural Applications
- N-Type TOPCon Cell Technology Delivers 10-30% Higher Energy Yield Than Conventional P-Type Modules
- 22.0% Module Efficiency With +5W Positive Power Tolerance
- Bifacial Design Produces Up To 25% Additional Energy From Reflected Rear-Side Light
- 80%+ Bifaciality Factor Maximizes Energy Harvest Throughout The Day
- Zero Light-Induced Degradation (LID) With Only 1% First-Year Power Loss
- Passivated Contact Design Minimizes Long-Term Power Degradation
- Dual-Glass Construction Provides Exceptional Durability And Light Transmission
- Excellent High-Temperature Performance With -0.30%/°C Temperature Coefficient
- Certified For 5400Pa Snow Loads And 2400Pa Wind Loads
- IP68-Rated Waterproof Junction Box For Harsh Outdoor Environments
- MC4-Compatible Connectors Enable Fast Plug-And-Play Installation
- Suitable For Grid-Tied, Off-Grid, BIPV, And Ground-Mounted Solar Systems
- 12-Year Product Warranty And 30-Year Linear Power Output Warranty
Specifications
| Maximum Power (Pmax) | 430W |
| Module Efficiency | 22.0% |
| Maximum Power Voltage (Vmp) | 31.9V |
| Maximum Power Current (Imp) | 13.5A |
| Open Circuit Voltage (Voc) | 37.4V |
| Short Circuit Current (Isc) | 14.7A |
| Maximum System Voltage | 1500VDC |
| Maximum Series Fuse Rating | 30A |
| Cell Technology | N-Type TOPCon |
| Cell Count | 108 Cells |
| Module Type | Bifacial |
| Front Glass | 2.0 mm Tempered Glass |
| Frame Material | Anodized Aluminum Alloy |
| Operating Temperature | -40°F To 185°F |
| Panel Cable Length | ≈ 47 in. |
| Dimensions | 67.8 x 44.7 x 1.2 in. |
| Weight | 50.9 lbs |
Installation
- MC4-Compatible Connectors Provide Fast Plug-And-Play Installation
- Suitable For Ground Mount, Roof Mount, Vertical Mounting, And BIPV Applications
- Install In Areas With Maximum Sun Exposure And Minimal Shading
- Compatible With Grid-Tied And Off-Grid Solar Power Systems
- Verify Correct Polarity Before Connecting To Charge Controllers Or Inverters
- Use Approved Mounting Hardware Rated For Local Wind And Snow Conditions
- Follow National And Local Electrical Codes During Installation
- Brand: Rich Solar
- SKU: RS-M430BF-8
- Viewed: 12
- Availability: In Stock
$1,971.00
Tags:Rich SolarMEGA 430 Bifacial430W Solar PanelBifacial Solar PanelN-Type Solar PanelTOPCon Solar PanelResidential SolarCommercial SolarAgricultural SolarOff Grid SolarRenewable EnergySolar Power SystemIP68 Junction BoxHigh Efficiency Solar PanelMC4 Compatible
