Features
- High-Efficiency Monocrystalline PERC Solar Cells Deliver Reliable 410-Watt Power Output
- Advanced PERC Technology Improves Energy Harvest And Low-Light Performance
- Excellent Performance During Cloudy Conditions, Morning, And Evening Sunlight
- Durable Tempered Glass Protects Against Harsh Environmental Conditions
- Corrosion-Resistant Anodized Aluminum Frame Designed For Long-Term Outdoor Use
- Positive Power Tolerance Maximizes Real-World Energy Production
- Low Temperature Coefficient Enhances Performance In Hot Weather Conditions
- Certified To Withstand Heavy Snow Loads And High Wind Pressures
- IP68-Rated Junction Box Provides Superior Weather Resistance
- Pre-Installed MC4 Compatible Connectors Enable Fast System Integration
- Suitable For Residential, Commercial, RV, Marine, And Off-Grid Applications
- Compatible With Grid-Tied And Off-Grid Solar Power Systems
- Designed For Long Service Life With Minimal Maintenance Requirements
- 25-Year Linear Power Output Warranty
- 12-Year Product Workmanship Warranty
Specifications
| Maximum Power (Pmax) | 410W |
| Cell Type | Monocrystalline PERC |
| Module Efficiency | Up To 21.0% |
| Maximum Power Voltage (Vmp) | 31.5V |
| Maximum Power Current (Imp) | 13.02A |
| Open Circuit Voltage (Voc) | 37.3V |
| Short Circuit Current (Isc) | 13.78A |
| Maximum System Voltage | 1500VDC |
| Maximum Series Fuse Rating | 25A |
| Cell Configuration | 108 Cells |
| Connector Type | MC4 Compatible |
| Junction Box Rating | IP68 |
| Wind Load Rating | 2400Pa |
| Snow Load Rating | 5400Pa |
| Dimensions | 67.8 x 44.6 x 1.4 in. |
| Weight | 48.5 lbs |
Installation
- Pre-Drilled Mounting Holes Support Roof, Ground, Pole, And Tilt Mount Systems
- MC4 Compatible Connectors Enable Fast Series And Parallel Wiring Configurations
- Install In Locations With Maximum Sun Exposure And Minimal Shading
- Compatible With Most Solar Charge Controllers And Inverter Systems
- Verify Correct Voltage And Polarity Before Electrical Connections
- Use Approved Mounting Hardware Rated For Local Environmental Conditions
- Follow National And Local Electrical Codes During Installation

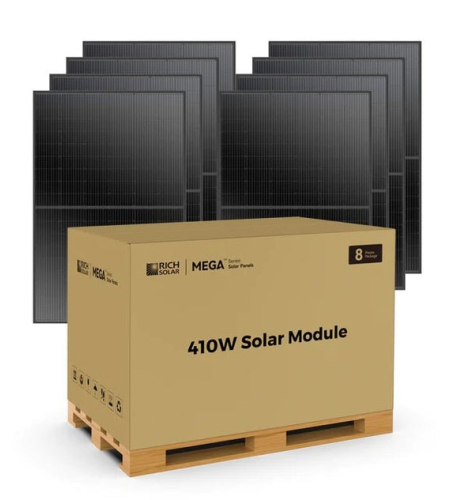

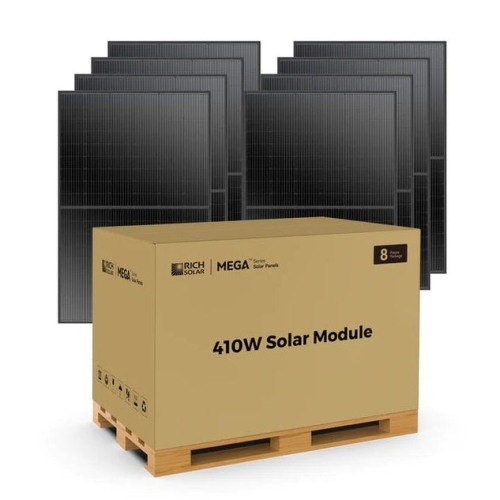

Rich Solar MEGA 410 Watt Monocrystalline PERC Solar Panel
- Product Code: RS-M410-8
Features
- High-Efficiency Monocrystalline PERC Solar Cells Deliver Reliable 410-Watt Power Output
- Advanced PERC Technology Improves Energy Harvest And Low-Light Performance
- Excellent Performance During Cloudy Conditions, Morning, And Evening Sunlight
- Durable Tempered Glass Protects Against Harsh Environmental Conditions
- Corrosion-Resistant Anodized Aluminum Frame Designed For Long-Term Outdoor Use
- Positive Power Tolerance Maximizes Real-World Energy Production
- Low Temperature Coefficient Enhances Performance In Hot Weather Conditions
- Certified To Withstand Heavy Snow Loads And High Wind Pressures
- IP68-Rated Junction Box Provides Superior Weather Resistance
- Pre-Installed MC4 Compatible Connectors Enable Fast System Integration
- Suitable For Residential, Commercial, RV, Marine, And Off-Grid Applications
- Compatible With Grid-Tied And Off-Grid Solar Power Systems
- Designed For Long Service Life With Minimal Maintenance Requirements
- 25-Year Linear Power Output Warranty
- 12-Year Product Workmanship Warranty
Specifications
| Maximum Power (Pmax) | 410W |
| Cell Type | Monocrystalline PERC |
| Module Efficiency | Up To 21.0% |
| Maximum Power Voltage (Vmp) | 31.5V |
| Maximum Power Current (Imp) | 13.02A |
| Open Circuit Voltage (Voc) | 37.3V |
| Short Circuit Current (Isc) | 13.78A |
| Maximum System Voltage | 1500VDC |
| Maximum Series Fuse Rating | 25A |
| Cell Configuration | 108 Cells |
| Connector Type | MC4 Compatible |
| Junction Box Rating | IP68 |
| Wind Load Rating | 2400Pa |
| Snow Load Rating | 5400Pa |
| Dimensions | 67.8 x 44.6 x 1.4 in. |
| Weight | 48.5 lbs |
Installation
- Pre-Drilled Mounting Holes Support Roof, Ground, Pole, And Tilt Mount Systems
- MC4 Compatible Connectors Enable Fast Series And Parallel Wiring Configurations
- Install In Locations With Maximum Sun Exposure And Minimal Shading
- Compatible With Most Solar Charge Controllers And Inverter Systems
- Verify Correct Voltage And Polarity Before Electrical Connections
- Use Approved Mounting Hardware Rated For Local Environmental Conditions
- Follow National And Local Electrical Codes During Installation
- Brand: Rich Solar
- SKU: RS-M410-8
- Viewed: 13
- Availability: In Stock
$1,903.00
Tags:Rich SolarMEGA 410410W Solar PanelMonocrystalline Solar PanelPERC Solar PanelResidential SolarCommercial SolarOff Grid SolarRV Solar PanelMarine Solar PanelRenewable EnergySolar Power SystemMC4 CompatibleHigh Efficiency Solar PanelGrid Tie Solar
