Features
- 580-Watt High-Output Bifacial Solar Panel For Residential, Commercial, And Agricultural Applications
- Advanced TOPCon Cell Technology Improves Energy Production And Long-Term Performance
- 16 Busbar Solar Cell Configuration Enhances Current Collection Efficiency
- Bifacial Design Captures Reflected Sunlight From The Rear Side For Additional Energy Generation
- Lightweight Anodized Aluminum Frame Provides Strength And Corrosion Resistance
- High-Transmission Anti-Reflective Tempered Glass Maximizes Solar Harvest
- Excellent Low-Light Performance During Cloudy Conditions, Mornings, And Evenings
- Plug-And-Play Junction Box Simplifies System Integration
- Industry-Standard Solar Connectors Support Series And Parallel Wiring Configurations
- PID-Resistant Construction For Improved Long-Term Reliability
- 100% EL Double Inspection And Extensive Quality Testing For Durability
- Certified To Withstand 2400Pa Wind Loads And 5400Pa Snow Loads
- IP68 Waterproof Junction Box For Harsh Outdoor Environments
- Suitable For Both Grid-Tied And Off-Grid Solar Installations
- 12-Year Product Warranty With 30-Year Linear Power Output Guarantee
Specifications
| Maximum Power (Pmax) | 580W |
| Maximum Power Voltage (Vmp) | 42.7V |
| Maximum Power Current (Imp) | 13.6A |
| Open Circuit Voltage (Voc) | 51.4V |
| Short Circuit Current (Isc) | 14.3A |
| Maximum System Voltage | 1500VDC |
| Module Efficiency | 22.5% |
| Max Series Fuse Rating | 30A |
| Cell Technology | TOPCon Monocrystalline |
| Module Type | Bifacial |
| Wind Load Rating | 2400Pa |
| Snow Load Rating | 5400Pa |
| Junction Box Rating | IP68 |
| Panel Cable Length | 47 in. |
| Dimensions | 89.7 x 44.7 x 1.2 in. |
| Weight | 68.8 lbs |
Installation
- Pre-Drilled Mounting Holes Support Ground Mounts, Pole Mounts, Tilt Mounts, And Z-Brackets
- Compatible With Both Grid-Tied And Off-Grid Inverter Systems
- Industry-Standard Solar Connectors Allow Quick Series Or Parallel Wiring
- Lightweight Aluminum Frame Simplifies Transportation And Installation
- Install In An Area With Maximum Sun Exposure And Minimal Shading
- Verify Proper Polarity Before Connecting To Charge Controllers Or Inverters
- Follow Local Electrical Codes And Manufacturer Installation Guidelines

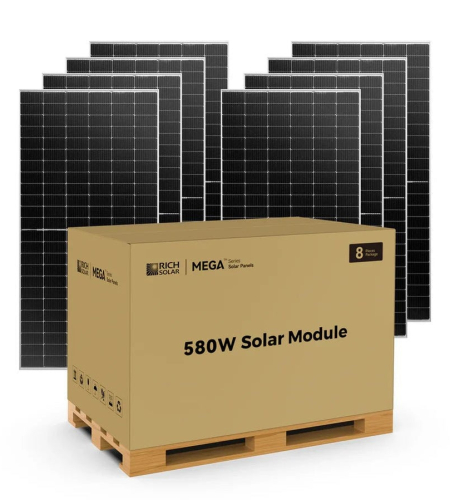

Rich Solar MEGA 580 Watt Bifacial Solar Panel
- Product Code: RS-M580BF-8
Features
- 580-Watt High-Output Bifacial Solar Panel For Residential, Commercial, And Agricultural Applications
- Advanced TOPCon Cell Technology Improves Energy Production And Long-Term Performance
- 16 Busbar Solar Cell Configuration Enhances Current Collection Efficiency
- Bifacial Design Captures Reflected Sunlight From The Rear Side For Additional Energy Generation
- Lightweight Anodized Aluminum Frame Provides Strength And Corrosion Resistance
- High-Transmission Anti-Reflective Tempered Glass Maximizes Solar Harvest
- Excellent Low-Light Performance During Cloudy Conditions, Mornings, And Evenings
- Plug-And-Play Junction Box Simplifies System Integration
- Industry-Standard Solar Connectors Support Series And Parallel Wiring Configurations
- PID-Resistant Construction For Improved Long-Term Reliability
- 100% EL Double Inspection And Extensive Quality Testing For Durability
- Certified To Withstand 2400Pa Wind Loads And 5400Pa Snow Loads
- IP68 Waterproof Junction Box For Harsh Outdoor Environments
- Suitable For Both Grid-Tied And Off-Grid Solar Installations
- 12-Year Product Warranty With 30-Year Linear Power Output Guarantee
Specifications
| Maximum Power (Pmax) | 580W |
| Maximum Power Voltage (Vmp) | 42.7V |
| Maximum Power Current (Imp) | 13.6A |
| Open Circuit Voltage (Voc) | 51.4V |
| Short Circuit Current (Isc) | 14.3A |
| Maximum System Voltage | 1500VDC |
| Module Efficiency | 22.5% |
| Max Series Fuse Rating | 30A |
| Cell Technology | TOPCon Monocrystalline |
| Module Type | Bifacial |
| Wind Load Rating | 2400Pa |
| Snow Load Rating | 5400Pa |
| Junction Box Rating | IP68 |
| Panel Cable Length | 47 in. |
| Dimensions | 89.7 x 44.7 x 1.2 in. |
| Weight | 68.8 lbs |
Installation
- Pre-Drilled Mounting Holes Support Ground Mounts, Pole Mounts, Tilt Mounts, And Z-Brackets
- Compatible With Both Grid-Tied And Off-Grid Inverter Systems
- Industry-Standard Solar Connectors Allow Quick Series Or Parallel Wiring
- Lightweight Aluminum Frame Simplifies Transportation And Installation
- Install In An Area With Maximum Sun Exposure And Minimal Shading
- Verify Proper Polarity Before Connecting To Charge Controllers Or Inverters
- Follow Local Electrical Codes And Manufacturer Installation Guidelines
- Brand: Rich Solar
- SKU: RS-M580BF-8
- Viewed: 11
- Availability: In Stock
$2,583.00
Tags:Rich SolarMEGA 580 Bifacial580W Solar PanelBifacial Solar PanelTOPCon Solar PanelMonocrystalline Solar PanelResidential SolarCommercial SolarAgricultural SolarOff Grid SolarRenewable EnergySolar Power SystemIP68 Junction BoxHigh Efficiency Solar PanelGrid Tie Solar
