Features
- High-Efficiency Monocrystalline Solar Cells Deliver Reliable 335-Watt Power Output
- 9-Busbar Cell Technology Improves Power Collection And Module Efficiency
- Excellent Low-Light Performance During Cloudy Conditions And Early Morning Sunlight
- Durable Tempered Glass Enhances Impact Resistance And Long-Term Reliability
- Corrosion-Resistant Anodized Aluminum Frame Designed For Outdoor Applications
- Advanced Cell Design Minimizes Internal Resistance And Power Loss
- Positive Power Tolerance Maximizes Real-World Energy Production
- Certified To Withstand Heavy Snow Loads And Strong Wind Conditions
- IP68-Rated Junction Box Provides Superior Weather Protection
- Pre-Installed MC4 Compatible Connectors Enable Fast System Integration
- Suitable For Residential, RV, Marine, Cabin, And Off-Grid Solar Systems
- Compatible With Grid-Tied And Off-Grid Power Installations
- Requires Minimal Maintenance Throughout Its Service Life
- 25-Year Linear Power Output Warranty
- 10-Year Product Workmanship Warranty
Specifications
| Maximum Power (Pmax) | 335W |
| Cell Type | Monocrystalline |
| Cell Configuration | 120 Cells |
| Maximum Power Voltage (Vmp) | 37.2V |
| Maximum Power Current (Imp) | 9.01A |
| Open Circuit Voltage (Voc) | 44.6V |
| Short Circuit Current (Isc) | 9.56A |
| Module Efficiency | Up To 20.2% |
| Maximum System Voltage | 1500VDC |
| Maximum Series Fuse Rating | 20A |
| Connector Type | MC4 Compatible |
| Junction Box Rating | IP68 |
| Wind Load Rating | 2400Pa |
| Snow Load Rating | 5400Pa |
| Dimensions | 66.9 x 39.4 x 1.4 in. |
| Weight | 39.7 lbs |
Installation
- Pre-Drilled Mounting Holes Support Roof, Ground, Pole, And Tilt Mount Installations
- MC4 Compatible Connectors Enable Fast Series And Parallel Connections
- Install In Areas With Maximum Sun Exposure And Minimal Shading
- Compatible With Most MPPT And PWM Charge Controllers
- Verify Proper Voltage And Polarity Before Connecting To Electrical Equipment
- Use Approved Mounting Hardware Suitable For Local Weather Conditions
- Follow National And Local Electrical Codes During Installation

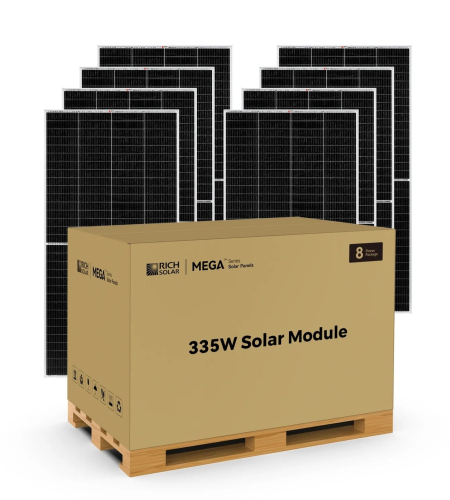

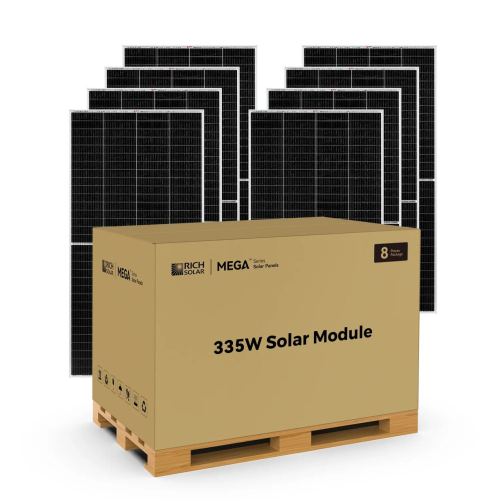

Rich Solar MEGA 335 PRO 335 Watt Monocrystalline Solar Panel
- Product Code: RS-M335P-8
Features
- High-Efficiency Monocrystalline Solar Cells Deliver Reliable 335-Watt Power Output
- 9-Busbar Cell Technology Improves Power Collection And Module Efficiency
- Excellent Low-Light Performance During Cloudy Conditions And Early Morning Sunlight
- Durable Tempered Glass Enhances Impact Resistance And Long-Term Reliability
- Corrosion-Resistant Anodized Aluminum Frame Designed For Outdoor Applications
- Advanced Cell Design Minimizes Internal Resistance And Power Loss
- Positive Power Tolerance Maximizes Real-World Energy Production
- Certified To Withstand Heavy Snow Loads And Strong Wind Conditions
- IP68-Rated Junction Box Provides Superior Weather Protection
- Pre-Installed MC4 Compatible Connectors Enable Fast System Integration
- Suitable For Residential, RV, Marine, Cabin, And Off-Grid Solar Systems
- Compatible With Grid-Tied And Off-Grid Power Installations
- Requires Minimal Maintenance Throughout Its Service Life
- 25-Year Linear Power Output Warranty
- 10-Year Product Workmanship Warranty
Specifications
| Maximum Power (Pmax) | 335W |
| Cell Type | Monocrystalline |
| Cell Configuration | 120 Cells |
| Maximum Power Voltage (Vmp) | 37.2V |
| Maximum Power Current (Imp) | 9.01A |
| Open Circuit Voltage (Voc) | 44.6V |
| Short Circuit Current (Isc) | 9.56A |
| Module Efficiency | Up To 20.2% |
| Maximum System Voltage | 1500VDC |
| Maximum Series Fuse Rating | 20A |
| Connector Type | MC4 Compatible |
| Junction Box Rating | IP68 |
| Wind Load Rating | 2400Pa |
| Snow Load Rating | 5400Pa |
| Dimensions | 66.9 x 39.4 x 1.4 in. |
| Weight | 39.7 lbs |
Installation
- Pre-Drilled Mounting Holes Support Roof, Ground, Pole, And Tilt Mount Installations
- MC4 Compatible Connectors Enable Fast Series And Parallel Connections
- Install In Areas With Maximum Sun Exposure And Minimal Shading
- Compatible With Most MPPT And PWM Charge Controllers
- Verify Proper Voltage And Polarity Before Connecting To Electrical Equipment
- Use Approved Mounting Hardware Suitable For Local Weather Conditions
- Follow National And Local Electrical Codes During Installation
- Brand: Rich Solar
- SKU: RS-M335P-8
- Viewed: 16
- Availability: In Stock
$1,563.00
