Features
- 10kW (LPG) / 9kW (NG) Air-Cooled Standby Generator Package
- Protects your home and family during a power outage
- Includes Mobile Link Wi-Fi Remote Monitoring*
- Monitor generator status on a smart phone, tablet or PC
- *Requires internet connection and wireless router
- 5-Year Limited Warranty
- Plus 24/7-365 Customer Support
- Have your questions answered when it's convenient for you

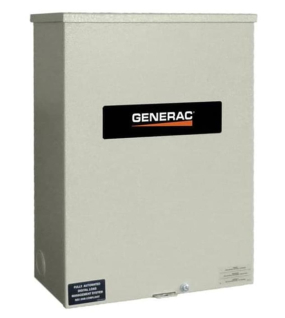

- 100-Amp Automatic Transfer Switch with Integrated Load Center
- NEMA 3R Outdoor Aluminum enclosure
- Great when main breaker panel is located outdoors
- 16-Circuit Essential Circuit Load Center
- For large main service and only partial generator backup
- Allows you to backup 120V and 240V circuits
- Compatible with 1" standard, tandem, GFCI and AFCI breakers
- New 460cc Generac G-Force Engine
- Specifically designed for the demanding standby environment
- Full pressure lubrication system with 2 year oil change interval
- Operates On Clean Burning, Efficient Natural Gas or LP (Vapor)
- Connects to your existing LP or natural gas fuel supply
- TRUE POWER Electrical Technology
- Less than 5% Total Harmonic Distortion (THD) for utility grade power
- Automatic Digital Voltage Regulation (+/-1%)
- Allows for faster response time and maximum motor starting ability

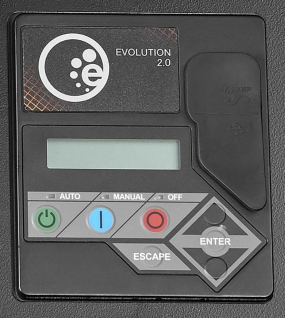

- Evolution2.0 Digital Controller
- Multilingual, 2-Line LCD display for simple, straightforward operation
- Programmable-exerciser helps prevent oil seal drying and damage
- QUIET-TEST Self-Test Mode
- Runs at a lower RPM for a five or twelve minute test
- Aluminum Enclosure with Rhino Coat powder-Coated Finish
- Corrosion resistant design for all weather conditions
- Installation Flexibility*
- Can be installed within 18" of a building
- *Always check local building codes
- Generac Standby Generators and Engines - Built In The USA*
- Built in the USA using domestic and foreign parts
- Additional Features
- Smart battery charger and 14" Flexible fuel line connector
- Also Includes:
- Automatic Transfer Switch Model # RXG16EZA3
- QuikProducts Generator Pad - QT8231
- Generac Battery - 5819
Overview
| Product Category | Standby Generator |
| Generator Features | Low Oil Alert/Shutdown |
| Battery Included | |
| Product Weight | 335 lbs |
| Length | 48" |
| Width | 25" |
| Height | 29" |
Specifications
| Voltage | 120, 240V |
| Frequency | 60 Hz |
| Running Wattage | 10,000 Watts |
| Fuel Type | Liquid Propane, Natural Gas |
| NG Power Capacity | 9,000 Watts |
| LP Power Capacity | 10,000 Watts |
| NG Fuel Consumption @ 50% Load | 101 ft3/hr |
| NG Fuel Consumption @ 100% Load | 127 ft3/hr |
| LP Fuel Consumption @ 50% Load | 1 gallons/hr |
| LP Fuel Consumption @ 100% Load | 1 gallons/hr |
| Amperage | 41.7A |
| Decibel Rating @ 7m | 61 dbA |
| Transfer Switch | Standard Installation |
| Enclosure Material | Aluminum |
| Mounting Pad | Composite (Included) |
| Cooling Type | Air Cooled |
Engine
| Engine Brand | Generac |
| Starting System | 12v Auto Start |
| Cubic Capacity | 460 CC |
| RPM | 3600 RPM |
| Low Oil Alert/Shutdown | Yes |
Product Assurance
| Certifications | UL |
| Warranty | 5 Year |
Generac Guardian Series 10kW (120 / 240V) Single-Phase Air Cooled Multi-Fuel Standby Generator 100a 16-Circuit Automatic Transfer Switch, Wi-Fi, Pad, Battery
- Product Code: GD-7172KIT-QT8231
Features
- 10kW (LPG) / 9kW (NG) Air-Cooled Standby Generator Package
- Protects your home and family during a power outage
- Includes Mobile Link Wi-Fi Remote Monitoring*
- Monitor generator status on a smart phone, tablet or PC
- *Requires internet connection and wireless router
- 5-Year Limited Warranty
- Plus 24/7-365 Customer Support
- Have your questions answered when it's convenient for you
- 100-Amp Automatic Transfer Switch with Integrated Load Center
- NEMA 3R Outdoor Aluminum enclosure
- Great when main breaker panel is located outdoors
- 16-Circuit Essential Circuit Load Center
- For large main service and only partial generator backup
- Allows you to backup 120V and 240V circuits
- Compatible with 1" standard, tandem, GFCI and AFCI breakers
- New 460cc Generac G-Force Engine
- Specifically designed for the demanding standby environment
- Full pressure lubrication system with 2 year oil change interval
- Operates On Clean Burning, Efficient Natural Gas or LP (Vapor)
- Connects to your existing LP or natural gas fuel supply
- TRUE POWER Electrical Technology
- Less than 5% Total Harmonic Distortion (THD) for utility grade power
- Automatic Digital Voltage Regulation (+/-1%)
- Allows for faster response time and maximum motor starting ability
- Evolution2.0 Digital Controller
- Multilingual, 2-Line LCD display for simple, straightforward operation
- Programmable-exerciser helps prevent oil seal drying and damage
- QUIET-TEST Self-Test Mode
- Runs at a lower RPM for a five or twelve minute test
- Aluminum Enclosure with Rhino Coat powder-Coated Finish
- Corrosion resistant design for all weather conditions
- Installation Flexibility*
- Can be installed within 18" of a building
- *Always check local building codes
- Generac Standby Generators and Engines - Built In The USA*
- Built in the USA using domestic and foreign parts
- Additional Features
- Smart battery charger and 14" Flexible fuel line connector
- Also Includes:
- Automatic Transfer Switch Model # RXG16EZA3
- QuikProducts Generator Pad - QT8231
- Generac Battery - 5819
Overview
| Product Category | Standby Generator |
| Generator Features | Low Oil Alert/Shutdown |
| Battery Included | |
| Product Weight | 335 lbs |
| Length | 48" |
| Width | 25" |
| Height | 29" |
Specifications
| Voltage | 120, 240V |
| Frequency | 60 Hz |
| Running Wattage | 10,000 Watts |
| Fuel Type | Liquid Propane, Natural Gas |
| NG Power Capacity | 9,000 Watts |
| LP Power Capacity | 10,000 Watts |
| NG Fuel Consumption @ 50% Load | 101 ft3/hr |
| NG Fuel Consumption @ 100% Load | 127 ft3/hr |
| LP Fuel Consumption @ 50% Load | 1 gallons/hr |
| LP Fuel Consumption @ 100% Load | 1 gallons/hr |
| Amperage | 41.7A |
| Decibel Rating @ 7m | 61 dbA |
| Transfer Switch | Standard Installation |
| Enclosure Material | Aluminum |
| Mounting Pad | Composite (Included) |
| Cooling Type | Air Cooled |
Engine
| Engine Brand | Generac |
| Starting System | 12v Auto Start |
| Cubic Capacity | 460 CC |
| RPM | 3600 RPM |
| Low Oil Alert/Shutdown | Yes |
Product Assurance
| Certifications | UL |
| Warranty | 5 Year |
- Brand: Generac
- SKU: GEN-10KW-100A-7172KIT
- Viewed: 19
- Availability: In Stock
$2,565.00
Tags:GeneracGenerac Guardian SeriesGenerac 10kW10kW GeneratorStandby GeneratorHome Standby GeneratorResidential GeneratorSingle Phase Generator120/240V GeneratorAir Cooled GeneratorMulti Fuel GeneratorLPG GeneratorNatural Gas Generator100A ATS16 Circuit Transfer SwitchAutomatic Transfer SwitchWiFi GeneratorSmart GeneratorGenerator BundleGenerator Pad IncludedGenerator Battery IncludedBackup Power SystemHome Backup PowerEmergency Power Generator
%20Single-Phase-285x318.jpg "Generac 22 kW (240 V) Single-Phase Air Cooled Multi-Fuel Standby Generator with 200A Automatic Transfer Switch")
%20Single-Phases-285x318.jpg "Generac 22 kW (240 V) Single-Phase Air Cooled Multi-Fuel Standby Generator with 200A Automatic Transfer Switch")

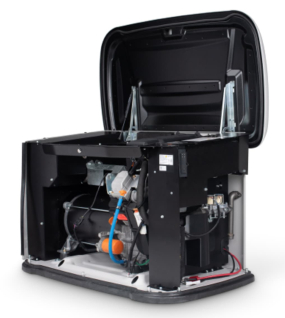

%20Single-Phase-285x318.jpg "Generac 18kW (120 / 240V) Single-Phase Air Cooled Multi-Fuel Standby Generator with 200a Smart Automatic Transfer Switch, Cellular, Wi-Fi and Bluetooth")
%20Single-Phases-285x318.jpg "Generac 18kW (120 / 240V) Single-Phase Air Cooled Multi-Fuel Standby Generator with 200a Smart Automatic Transfer Switch, Cellular, Wi-Fi and Bluetooth")
%20Single-Phase-285x318.jpg "Generac 18kW (120 / 240V) Single-Phase Air Cooled Multi-Fuel Standby Generator with 200a Smart Automatic Transfer Switch, Cellular, Wi-Fi and Bluetooth")
%20Single-Phase-285x318.jpg "Generac 18kW (120 / 240V) Single-Phase Air Cooled Multi-Fuel Standby Generator with Cellular, Wi-Fi and Bluetooth Connectivity")
%20Single-Phase-285x318.jpg "Generac 18kW (120 / 240V) Single-Phase Air Cooled Multi-Fuel Standby Generator with Cellular, Wi-Fi and Bluetooth Connectivity")

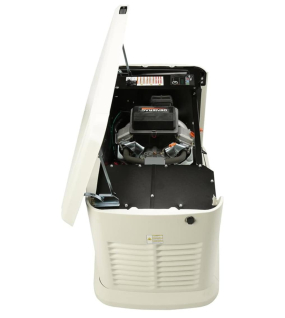

%20Single-Phase%20Air%20Cooled%20Multi-Fuel%20Standby%20Generator-285x318.jpg "Generac Guardian Series 10 kW (120 / 240V) Single-Phase Air Cooled Multi-Fuel Standby Generator")
%20Single-Phase%20Air%20Cooled%20Multi-Fuel%20Standby%20Generator%20with%20100a%20Automatic%20Transfer%20Switch-285x318.jpg "Generac Guardian Series 10 kW (120 / 240V) Single-Phase Air Cooled Multi-Fuel Standby Generator")

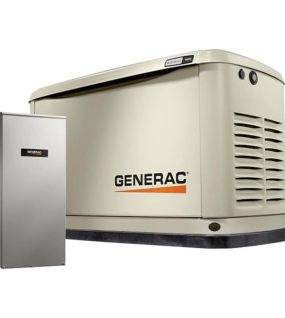

%20Single-Phase%20Air%20Cooled%20Multi-Fuel%20Standby%20Generator%20with%20100a%20Automatic%20Transfer%20Switchs-285x318.jpg "Generac Guardian Series 10 kW (120 / 240V) Single-Phase Air Cooled Multi-Fuel Standby Generator with 100a Automatic Transfer Switch")
