Features
- Kohler RXT Series 400-Amp Automatic Transfer Switch
- For use with 48RCL 120/240V 3-Phase models
- Only compatible with Kohler generators with RDC2/DC2 controllers
- Corrosion-Resistant NEMA 3R Aluminum Enclosure
- Approved for indoor or outdoor installations
- Switch can be padlocked for additional safety
- Standard Features
- Allows utility voltage display on RDC2/DC2 controller
- Interface board for connection to the RDC2/DC2 controller
- Double throw inherently interlocked design
- Added Safety
- Contractor manually operable for maintenance purposes
- Standard Installation
- Requires a sub-panel for overload protection
- Rated at 400-Amps @ 120/240-Volts 3-Phase
- 5-Year Limited Warranty
Overview
- Transfer Switch Style: Standard Installation
- Product Weight: 90 lbs
- Depth: 12-7/8"
- Width: 22"
- Height: 42"
Specifications
- Voltage: 120, 240V
- Frequency: 60 Hz
- Electrical Phases: 3
- Max Generator Input: 400A
- Max Utility Input: 400A
- Enclosure Material: NEMA 3R
Product Assurance
- Certifications: UL
- Warranty: 5 Year

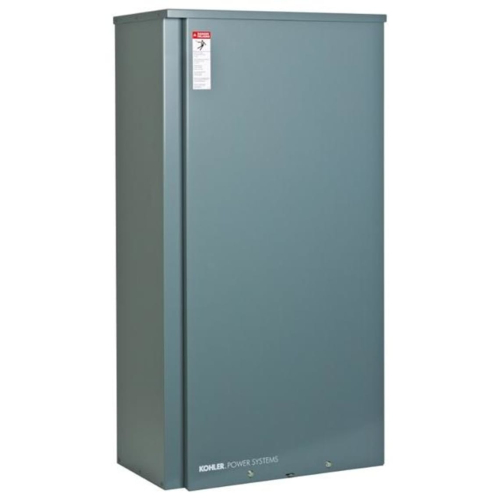

Kohler Power Systems RXT 400-Amp 120 / 240V 3-Phase Standard Automatic Transfer Switch
- Product Code: RXT-JFTC-400A-MV06
Features
- Kohler RXT Series 400-Amp Automatic Transfer Switch
- For use with 48RCL 120/240V 3-Phase models
- Only compatible with Kohler generators with RDC2/DC2 controllers
- Corrosion-Resistant NEMA 3R Aluminum Enclosure
- Approved for indoor or outdoor installations
- Switch can be padlocked for additional safety
- Standard Features
- Allows utility voltage display on RDC2/DC2 controller
- Interface board for connection to the RDC2/DC2 controller
- Double throw inherently interlocked design
- Added Safety
- Contractor manually operable for maintenance purposes
- Standard Installation
- Requires a sub-panel for overload protection
- Rated at 400-Amps @ 120/240-Volts 3-Phase
- 5-Year Limited Warranty
Overview
- Transfer Switch Style: Standard Installation
- Product Weight: 90 lbs
- Depth: 12-7/8"
- Width: 22"
- Height: 42"
Specifications
- Voltage: 120, 240V
- Frequency: 60 Hz
- Electrical Phases: 3
- Max Generator Input: 400A
- Max Utility Input: 400A
- Enclosure Material: NEMA 3R
Product Assurance
- Certifications: UL
- Warranty: 5 Year
- Brand: Kohler
- SKU: RXT-JFTC-400A-MV06
- Viewed: 58
- Availability: In Stock
$1,979.00
