Features
- UL 1008 listed (cULus) file #E58962 automatic transfer switch.
- IBC seismic certification available.
- Contactor-based service entrance ATS.
- Available in 2, 3, or 4 pole configurations.
- Integral solid neutral provides line-to-neutral monitoring.
- Electrically operated, mechanically held mechanism.
- High withstand and close-on ratings.
- Designed for emergency and standby applications on all load classes.
- 100% tungsten rated through 400 amps.
- Silver alloy main contacts.
- Gold-flashed engine start contacts rated 2 amps at 30 VDC/250 VAC.
- Front-accessible contacts for easy inspection.
- Front-replaceable main and arcing contacts (800–4000 amps).
- Reliable field-proven solenoid mechanism.
- Switching mechanisms lubricated for the expected life of the transfer switch.
- Internal manual operating handle.
- Main shaft auxiliary position-indicating contacts rated 10 amps at 32 VDC/250 VAC.
- NEMA type 1, 12, 3R, 4, and 4X enclosures available.
- Standard one-year limited warranty with extended warranty options available.
- Standard-transition operation.
- Transfer time less than 100 milliseconds (6 cycles at 60 Hz).
- Double-throw mechanically interlocked design (break-before-make).
- Supports solid or switched neutral configurations.
- Compatible with standard and high-fault circuit breakers.
- 80% or 100% circuit breakers available.
- Thermal magnetic breakers available up to 250 amps.
- Electronic trip breakers available from 70–4000 amps.
- Decision-Maker MPAC 1500 controller with backlit 4-line LCD.
- Allows easy programming and status viewing directly on the door.
- Displays source availability, switch position, faults, and auto status.
Specifications
| Transfer Switch Style | Service Disconnect |
| Series | KUS |
| Current Rating | 800 Amps |
| Voltage | 120/240V AC |
| Frequency | 60 Hz |
| Electrical Phases | Single Phase |
| Pole Configuration | 2-Pole / 3-Wire |
| Maximum Generator Input | 800A |
| Maximum Utility Input | 800A |
| Enclosure Material | NEMA 3R |
| Controller | Decision-Maker MPAC 1500 |
| Product Weight | 1105 lbs (501 kg) |
| Width | 38 Inches |
| Height | 90 Inches |
| Certifications | UL Listed |
| Warranty | 1 Year Limited Warranty |

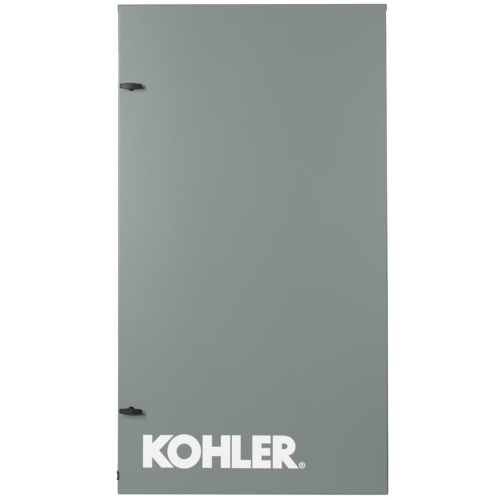

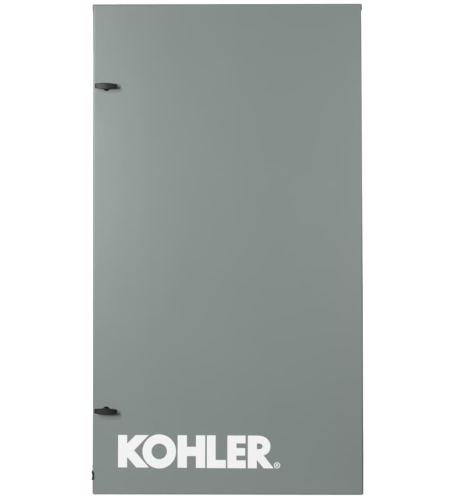

Kohler Power Systems KUS Series 800-Amp (120 / 240V) Single-Phase Outdoor Service Disconnect Automatic Transfer Switch (2-Pole / 3-Wire)
- Product Code: KUS-DFNC-800WS-QS1
Features
- UL 1008 listed (cULus) file #E58962 automatic transfer switch.
- IBC seismic certification available.
- Contactor-based service entrance ATS.
- Available in 2, 3, or 4 pole configurations.
- Integral solid neutral provides line-to-neutral monitoring.
- Electrically operated, mechanically held mechanism.
- High withstand and close-on ratings.
- Designed for emergency and standby applications on all load classes.
- 100% tungsten rated through 400 amps.
- Silver alloy main contacts.
- Gold-flashed engine start contacts rated 2 amps at 30 VDC/250 VAC.
- Front-accessible contacts for easy inspection.
- Front-replaceable main and arcing contacts (800–4000 amps).
- Reliable field-proven solenoid mechanism.
- Switching mechanisms lubricated for the expected life of the transfer switch.
- Internal manual operating handle.
- Main shaft auxiliary position-indicating contacts rated 10 amps at 32 VDC/250 VAC.
- NEMA type 1, 12, 3R, 4, and 4X enclosures available.
- Standard one-year limited warranty with extended warranty options available.
- Standard-transition operation.
- Transfer time less than 100 milliseconds (6 cycles at 60 Hz).
- Double-throw mechanically interlocked design (break-before-make).
- Supports solid or switched neutral configurations.
- Compatible with standard and high-fault circuit breakers.
- 80% or 100% circuit breakers available.
- Thermal magnetic breakers available up to 250 amps.
- Electronic trip breakers available from 70–4000 amps.
- Decision-Maker MPAC 1500 controller with backlit 4-line LCD.
- Allows easy programming and status viewing directly on the door.
- Displays source availability, switch position, faults, and auto status.
Specifications
| Transfer Switch Style | Service Disconnect |
| Series | KUS |
| Current Rating | 800 Amps |
| Voltage | 120/240V AC |
| Frequency | 60 Hz |
| Electrical Phases | Single Phase |
| Pole Configuration | 2-Pole / 3-Wire |
| Maximum Generator Input | 800A |
| Maximum Utility Input | 800A |
| Enclosure Material | NEMA 3R |
| Controller | Decision-Maker MPAC 1500 |
| Product Weight | 1105 lbs (501 kg) |
| Width | 38 Inches |
| Height | 90 Inches |
| Certifications | UL Listed |
| Warranty | 1 Year Limited Warranty |
- Brand: Kohler
- SKU: KUS-DFNC-800WS-QS1
- Viewed: 91
- Availability: In Stock
$18,000.00
