Features
- 400-Amp ASCO 185 Series Automatic Transfer Switch for 120/240V three-phase applications
- Compatible with Briggs & Stratton three-phase generators
- NEMA 3R outdoor-rated enclosure for indoor or outdoor installations
- Designed for standard installation applications
- Requires a sub-panel for overload protection
- True double-throw contacts with inherent mechanical interlocking
- Prevents generator and utility source connection for maximum safety
- Integrated terminals for neutral and ground conductors
- Simplifies installation and wiring procedures
- Convenient control interface with symbols and visual indicators
- Provides easy monitoring of switch and power source status
- Built-in auxiliary contacts indicate switch position changes
- Delivers immediate status feedback during operation
- Meets Article 702 requirements of the NFPA-70 National Electrical Code
- UL 1008 listed for optional standby systems
- Complies with additional safety and performance standards
- Engineered for dependable standby power applications
- Rugged construction ensures long-term reliability
- Suitable for commercial and industrial backup systems
- Backed by a 3-year limited warranty
Specifications
| Transfer Switch Style | Standard Installation |
| Voltage | 120/240V |
| Frequency | 60 Hz |
| Electrical Phases | 3 |
| Max Generator Input | 400A |
| Max Utility Input | 400A |
| Enclosure Material | NEMA 3R |
| Switch Type | Automatic Transfer Switch |
| Contact Design | Double-Throw, Mechanically Interlocked |
| Certifications | UL 1008, UL Listed |
| Compliance | NFPA-70 NEC Article 702 |
| Warranty | 3 Year Limited |

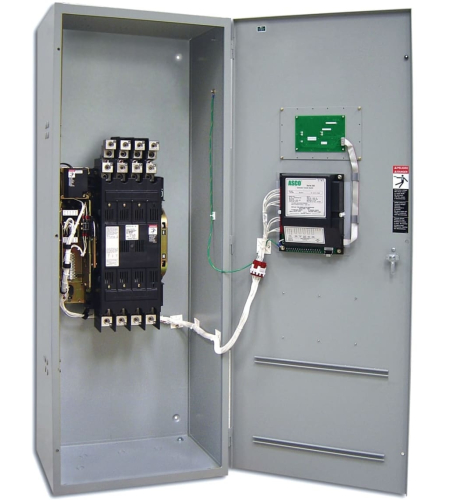

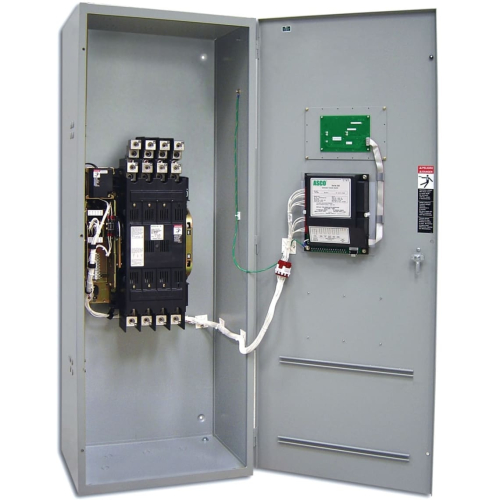

Briggs And Stratton ASCO 185 400-Amp (120 / 240V) 3-Phase Outdoor Automatic Transfer Switch
- Product Code: 071113
Features
- 400-Amp ASCO 185 Series Automatic Transfer Switch for 120/240V three-phase applications
- Compatible with Briggs & Stratton three-phase generators
- NEMA 3R outdoor-rated enclosure for indoor or outdoor installations
- Designed for standard installation applications
- Requires a sub-panel for overload protection
- True double-throw contacts with inherent mechanical interlocking
- Prevents generator and utility source connection for maximum safety
- Integrated terminals for neutral and ground conductors
- Simplifies installation and wiring procedures
- Convenient control interface with symbols and visual indicators
- Provides easy monitoring of switch and power source status
- Built-in auxiliary contacts indicate switch position changes
- Delivers immediate status feedback during operation
- Meets Article 702 requirements of the NFPA-70 National Electrical Code
- UL 1008 listed for optional standby systems
- Complies with additional safety and performance standards
- Engineered for dependable standby power applications
- Rugged construction ensures long-term reliability
- Suitable for commercial and industrial backup systems
- Backed by a 3-year limited warranty
Specifications
| Transfer Switch Style | Standard Installation |
| Voltage | 120/240V |
| Frequency | 60 Hz |
| Electrical Phases | 3 |
| Max Generator Input | 400A |
| Max Utility Input | 400A |
| Enclosure Material | NEMA 3R |
| Switch Type | Automatic Transfer Switch |
| Contact Design | Double-Throw, Mechanically Interlocked |
| Certifications | UL 1008, UL Listed |
| Compliance | NFPA-70 NEC Article 702 |
| Warranty | 3 Year Limited |
- Brand: Briggs And Stratton
- SKU: 071113
- Viewed: 72
- Availability: In Stock
$3,587.00
