Features
- 200-Amp 185 Series By ASCO Automatic Transfer Switch (277/480V 3-Phase)
- Compatible with Briggs & Stratton 3-Phase Generators
- NEMA 3R Outdoor Rated Enclosure
- Approved for indoor or outdoor installations
- Standard Installation
- Requires a sub-panel for overload protection
- True Double-Throw Contacts with Inherent Mechanical Interlocking
- Prevents connection of generator and utility source for maximum safety
- Terminals for connection of neutral and ground conductors
- Allows for easier installation
- Convenient Control Interface with Symbols and Visual Indicators
- Makes it easy to see transfer switch and power source status
- Built-In Auxiliary Contacts for Switch Position Indication
- Provides immediate indication when the switch position changes
- Meets Article 702, NFPA-70 National Electrical Code (NEC) requirements
- Listed to UL 1008 for optional standby systems
- Please see specification sheet for additional compliance and safety standards
- 3-Year Limited Warranty
Overview
- Transfer Switch Style: Standard Installation
Specifications
- Voltage: 277, 480V
- Frequency: 60 Hz
- Electrical Phases: 3
- Max Generator Input: 200A
- Max Utility Input: 200A
- Enclosure Material: NEMA 3R
Product Assurance
- Certifications: UL
- Warranty: 3 Year

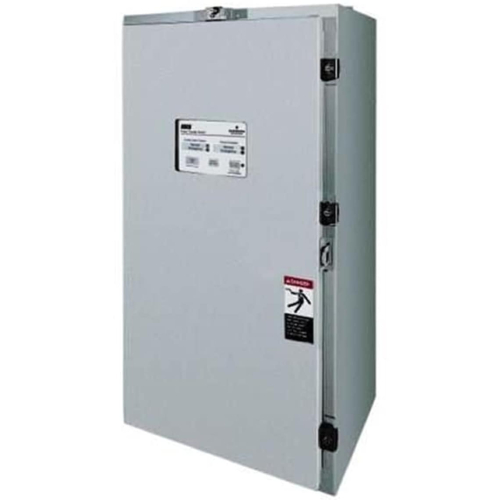

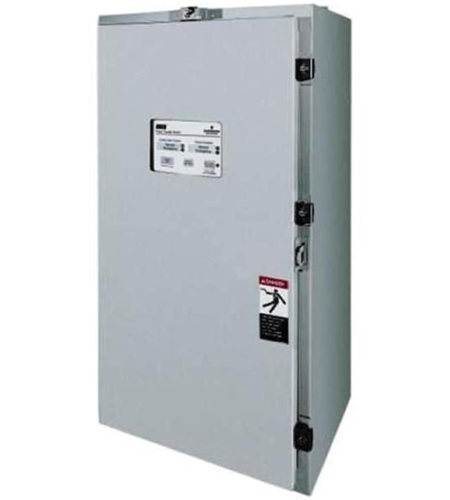

Briggs And Stratton ASCO 185 200-Amp (277 / 480V) 3-Phase Outdoor Automatic Transfer Switch
- Product Code: 071109
Features
- 200-Amp 185 Series By ASCO Automatic Transfer Switch (277/480V 3-Phase)
- Compatible with Briggs & Stratton 3-Phase Generators
- NEMA 3R Outdoor Rated Enclosure
- Approved for indoor or outdoor installations
- Standard Installation
- Requires a sub-panel for overload protection
- True Double-Throw Contacts with Inherent Mechanical Interlocking
- Prevents connection of generator and utility source for maximum safety
- Terminals for connection of neutral and ground conductors
- Allows for easier installation
- Convenient Control Interface with Symbols and Visual Indicators
- Makes it easy to see transfer switch and power source status
- Built-In Auxiliary Contacts for Switch Position Indication
- Provides immediate indication when the switch position changes
- Meets Article 702, NFPA-70 National Electrical Code (NEC) requirements
- Listed to UL 1008 for optional standby systems
- Please see specification sheet for additional compliance and safety standards
- 3-Year Limited Warranty
Overview
- Transfer Switch Style: Standard Installation
Specifications
- Voltage: 277, 480V
- Frequency: 60 Hz
- Electrical Phases: 3
- Max Generator Input: 200A
- Max Utility Input: 200A
- Enclosure Material: NEMA 3R
Product Assurance
- Certifications: UL
- Warranty: 3 Year
- Brand: Briggs And Stratton
- SKU: 071109
- Viewed: 63
- Availability: In Stock
$1,937.00
