Features
- Kohler KSS-Series 800-Amp Automatic Transfer Switch
- Compatible with all Kohler 120/208V three-phase generators
- Corrosion-resistant NEMA 3R aluminum enclosure
- Lockable enclosure approved for indoor and outdoor installations
- Double-throw, mechanically interlocked design (Break-Before-Make)
- Provides rugged contractor-grade construction for reliable switching
- Decision-Maker MPAC 1200 controller with LED display and indicators
- Complete programming and system monitoring capability at the door
- LED indicators with programmable voltage and frequency pickup/dropout settings
- Programmable time delays and automatic generator exerciser
- Flexible setup allows scheduling generator exercise times
- Time-based load control for enhanced system protection
- High withstand and closing ratings when used with approved breakers
- Front-accessible contacts for easy inspection and maintenance
- Standard installation design requires a sub-panel for overload protection
- Rated at 800 amps at 208 volts
- Designed for dependable standby power transfer applications
- Please refer to specification sheet for codes, standards, and certifications
- Standard 1-year limited warranty
Specifications
| Transfer Switch Style | Standard Installation |
| Voltage | 120 / 208V |
| Frequency | 60 Hz |
| Electrical Phases | 3 |
| Max Generator Input | 800A |
| Max Utility Input | 800A |
| Enclosure Material | NEMA 3R Aluminum |
| Width | 34" |
| Height | 76-1/8" |
| Product Weight | 498 lbs |
| Certifications | UL |
| Warranty | 1 Year |

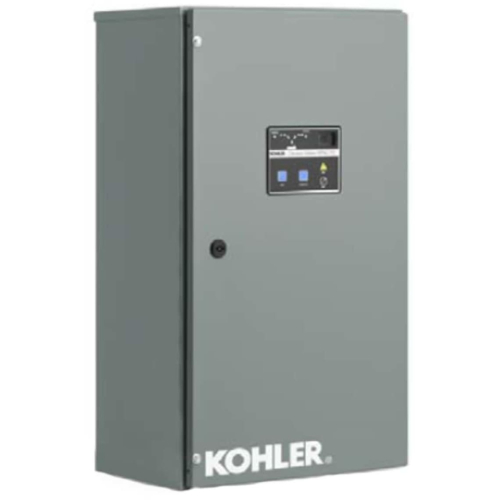

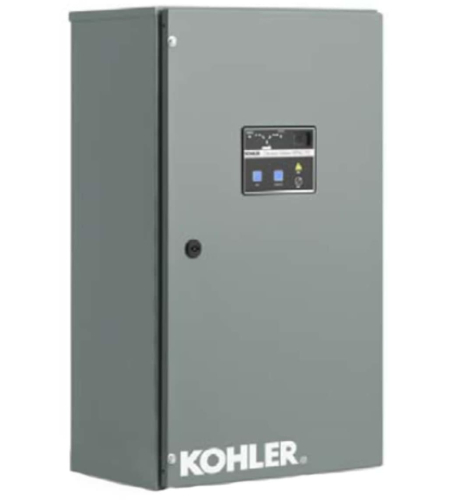

Kohler Power Systems KSS Series 800-Amp (120 / 208V) 3-Phase Automatic Transfer Switch
- Product Code: KSS-ACTC-0800S-QS1
Features
- Kohler KSS-Series 800-Amp Automatic Transfer Switch
- Compatible with all Kohler 120/208V three-phase generators
- Corrosion-resistant NEMA 3R aluminum enclosure
- Lockable enclosure approved for indoor and outdoor installations
- Double-throw, mechanically interlocked design (Break-Before-Make)
- Provides rugged contractor-grade construction for reliable switching
- Decision-Maker MPAC 1200 controller with LED display and indicators
- Complete programming and system monitoring capability at the door
- LED indicators with programmable voltage and frequency pickup/dropout settings
- Programmable time delays and automatic generator exerciser
- Flexible setup allows scheduling generator exercise times
- Time-based load control for enhanced system protection
- High withstand and closing ratings when used with approved breakers
- Front-accessible contacts for easy inspection and maintenance
- Standard installation design requires a sub-panel for overload protection
- Rated at 800 amps at 208 volts
- Designed for dependable standby power transfer applications
- Please refer to specification sheet for codes, standards, and certifications
- Standard 1-year limited warranty
Specifications
| Transfer Switch Style | Standard Installation |
| Voltage | 120 / 208V |
| Frequency | 60 Hz |
| Electrical Phases | 3 |
| Max Generator Input | 800A |
| Max Utility Input | 800A |
| Enclosure Material | NEMA 3R Aluminum |
| Width | 34" |
| Height | 76-1/8" |
| Product Weight | 498 lbs |
| Certifications | UL |
| Warranty | 1 Year |
- Brand: Kohler
- SKU: KSS-ACTC-0800S-QS1
- Viewed: 103
- Availability: In Stock
$7,368.00
