Generator Features
Ford 2.5L Engine - The 4 cylinder, overhead valve engine meets EPA/CARB emission regulations.
Stamford Generator End - The s series has a 3 year warranty on the generator end and includes auxiliary winding standard with short circuit capability.
Premium Circuit Breakers - Dependable circuit breaker protection.
Battery Charger - Factory installed 5 stage, 5 Amp battery charger.
Block Heater - In-Line Hotstart, 120V, block heater with thermostat.
DSE 7310 Controller - The DSE7310 is a powerful, new generation auto start genset control module with a highly sophisticated level of new features and functions, presented in the usual user-friendly format.
Galvanealed Steel Weather Enclosure - Our weather enclosures provide sound reduction while our powder coat paint provides a durable, long lasting finish.
100% Load Tested - You won't find statistical sampling here. Winco load tests every generator before it leaves the factory.
PSS30 Generator Specifications
Motor Starting (Code G)
10 HP
dBA @ 7 Meters
75
Total Harmonic Distortion
<5%
Floating Neutral
Yes
Assembled In
USA
UL Certification
UL2200 Listed
EPA Approved
Standby Only
CSA Approved
Yes
Unit Warranty
2 Yr/2000 Hrs
Shipping Dimensions
86" x 40" x 51"
Ship Weight
1,570 LBS
Freight Class
70
PSS30 Gen End Specifications
Windings Single Phase
4 Lead
Windings Three Phase
12 Lead
Winding Number Single Phase
706
Winding Number Three Phase
711
Voltage Regulation
AVR +/-1%
AVR Type
AS540
Temperature Rise
125°/40° C
Type
Revolving Field
Brushless
Yes
Generator Speed
1800 RPM
Rotor
2/3 Pitch
Windings
100% Copper
Stator Winding 706
Single Layer Concentric
Stator Winding 711
Double Layer Concentric
Coupling
Direct/Flexible Disc
Bearings
Single (maintenance free)
Efficiency Peak Single Phase 1.0 PF
84.1
Efficiency Peak Three Phase 0.8 PF
79.4
Insulation
Class H
Ingress Protection
IP23
PSS30 Engine Specifications
Engine Manufacturer
Ford
Engine Model
MSG-425
Engine Starter
12V Electric
Engine Speed
1800
Engine Cylinders
4
HP Rating NG
47
HP Rating LP
49
Frequency
60 Hz
Torque NG
70 ft/lbs
Torque LP
63 ft/lbs
Alternator
95 Amps
Flywheel
10"
Rotation
CCW
Aspiration
Natural
Exhaust Outlet
3"
Bore/Stroke
89 mm x 100 mm
Displacement/Type
2.5 L
Low Oil Protection
Standard
Recommended Oil
5W-20 SAE
Oil Capacity
7 QT
Governor
Electronic
Compression Ratio
9.1:1
Fan Type
Pusher
Coolant Capacity
6.6 QT
High Coolant Temp Protection
Standard
Combustion Air
67.54 CFM
Radiator Cooling Air
4420 CFM
Fuel Inlet Pressure
4-6 oz / 7-11" water column
Fuel Inlet Size
3/4"
Fuel Consumption NG 100% Load
306 FT³/HR - 321,576 BTU/HR
Fuel Consumption NG 75% Load
248 FT³/HR - 267,524 BTU/HR
Fuel Consumption NG 50% Load
191 FT³/HR - 205,787 BTU/HR
Fuel Consumption NG 25% Load
134 FT³/HR - 144,050 BTU/HR
Fuel Consumption NG 0% Load
71 FT³/HR - 82,312 BTU/HR
Fuel Consumption LP 100% Load
3.6 GAL/HR - 277.600 BTU/HR
Fuel Consumption LP 75% Load
2.9 GAL/HR - 263,900 BTU/HR
Fuel Consumption LP 50% Load
2.25 GAL/HR - 204,750 BTU/HR
Fuel Consumption LP 25% Load
1.584 GAL/HR - 143,780 BTU/HR
Fuel Consumption LP 0% Load
0.9 GAL/HR - 81,900 BTU/HR
PSS30 Battery Specifications
DC System Voltage
12V
DC Alternator
Engine Mounted
Battery Rack/Cables
Included
Battery Charger
5 Amp Included
Required Battery (1)
Group 24 650 CCA
Additional Information
Weight
1570 lbs
Dimensions
86 × 40 × 51 in

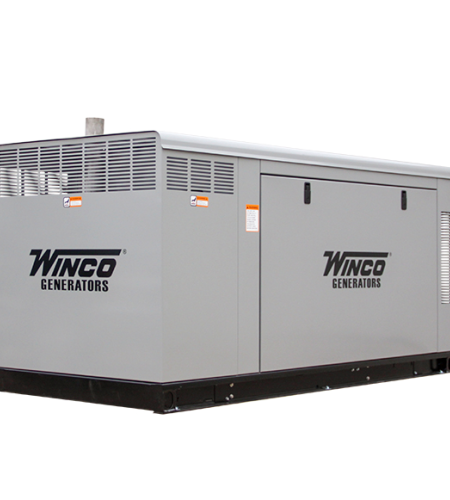

Winco PSS30 – Standby Generator
