Features
- Generac Mobile MDG75DF4 Skid-Mount Diesel Generator
- Designed and engineered for optimum performance and reliability
- Marathon Electric Brushless Alternator - Multi-Phase Output
- Three-Phase: 60 kW / 75 kVA (Prime), 68 kW / 85 kVA (Standby)
- Single-Phase: 55 kW / 55 kVA (Prime), 55 kW / 55 kVA (Standby)
- PM600 Voltage Regulator
- Provides voltage regulation of +/- 0.5% for cleaner power
- 3-Position Voltage Selector Switch
- Single Phase - 120/240V Zig Zag
- 3-Phase - 120/208V Low Wye and 3-Phase 277/480V High Wye
- 4.5L John Deere turbocharged, after-cooled diesel engine (EPA Tier 4 Final)
- Fuel efficient design runs at 1800 RPM for extended engine life
- Rubber vibration dampers isolate engine and generator from frame for quieter operation
- 165-gallon polyethylene internal fuel tank with 3.5 inch fill port
- Provides up to 30 hours of run time at 100% load
- Deep Sea controller with 4-line back-lit LCD text display
- Push button design with manual or auto start, engine start, stop/reset, and alarm mute
- Scrolling arrows for diagnostic information including engine and generator diagnostics
- 9 warning and shutdown alarms with 250-event history log (date and time stamp)
- Provides safer operation by monitoring engine and generator systems
- 300-Amp main breaker with shunt trip
- Lockable control box door with diagnostics window
- Remote start and stop contacts located in lug box
- Lockable lug box with safety switch and output ground connection lug
- (2) 120V 20A GFCI duplex outlets (5-20R) and (3) 240V 50A twistlock outlets
- Individually breakered outlets for added safety during operation
- Sound attenuated aluminum enclosure rated at 74 dB(A) at 23 feet (Prime Power)
- Powder-coated, UV and fade resistant paint for enclosure interior and exterior
- Fully lockable enclosure and fuel fill, insulated and baffled with central lifting point
- External emergency stop switch and multi-lingual safety decals
- Customers must unload from freight carrier
- 2-Year / 2,000 Hour Limited Warranty
- Includes Generac single-axle trailer
- DOT approved tubular steel trailer with surge brakes and 3 inch ring hitch
- Transportation tie downs and safety chains with spring-loaded hooks
- LED tail, side, brake and directional lights
- 15 inch tires and polyethylene fenders
Overview
Product Category
Towable Generator
Generator Features
Automatic Voltage Regulation, Fuel Gauge, Hour Meter, Idle Control, Low THD, Battery Included
Product Weight
4530 lbs
Length
170"
Width
69"
Height
80"
Technical Specifications
Frequency
60 Hz
Running Wattage
60000 Watts
Starting Wattage
68000 Watts
Decibel Rating @ 7m
74 dB(A)
Engine
Engine Brand
John Deere
Starting System
12-Volt Key Start
Cubic Capacity
4500 cc
Horsepower
97 HP
RPM
1800 RPM
Product Assurance
EPA Compliant
Yes
Manufacturer Warranty
2 Year

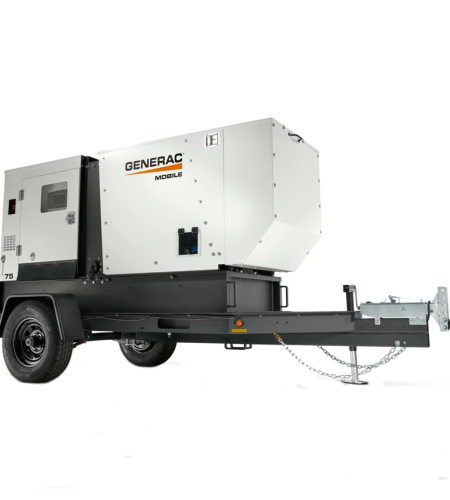

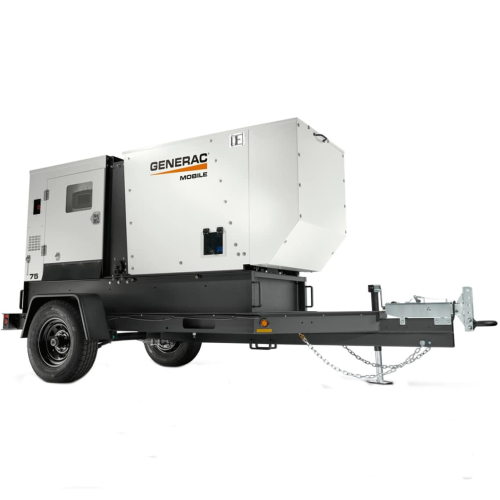

Generac MDG75DF4-STD3 60kW (Prime) / 68kW (Standby) Multi-Voltage Skid-Mount Diesel Generator (John Deere Engine) with Single-Axle Trailer
- Product Code: MDG75DF4-STD3
Features
- Generac Mobile MDG75DF4 Skid-Mount Diesel Generator
- Designed and engineered for optimum performance and reliability
- Marathon Electric Brushless Alternator - Multi-Phase Output
- Three-Phase: 60 kW / 75 kVA (Prime), 68 kW / 85 kVA (Standby)
- Single-Phase: 55 kW / 55 kVA (Prime), 55 kW / 55 kVA (Standby)
- PM600 Voltage Regulator
- Provides voltage regulation of +/- 0.5% for cleaner power
- 3-Position Voltage Selector Switch
- Single Phase - 120/240V Zig Zag
- 3-Phase - 120/208V Low Wye and 3-Phase 277/480V High Wye
- 4.5L John Deere turbocharged, after-cooled diesel engine (EPA Tier 4 Final)
- Fuel efficient design runs at 1800 RPM for extended engine life
- Rubber vibration dampers isolate engine and generator from frame for quieter operation
- 165-gallon polyethylene internal fuel tank with 3.5 inch fill port
- Provides up to 30 hours of run time at 100% load
- Deep Sea controller with 4-line back-lit LCD text display
- Push button design with manual or auto start, engine start, stop/reset, and alarm mute
- Scrolling arrows for diagnostic information including engine and generator diagnostics
- 9 warning and shutdown alarms with 250-event history log (date and time stamp)
- Provides safer operation by monitoring engine and generator systems
- 300-Amp main breaker with shunt trip
- Lockable control box door with diagnostics window
- Remote start and stop contacts located in lug box
- Lockable lug box with safety switch and output ground connection lug
- (2) 120V 20A GFCI duplex outlets (5-20R) and (3) 240V 50A twistlock outlets
- Individually breakered outlets for added safety during operation
- Sound attenuated aluminum enclosure rated at 74 dB(A) at 23 feet (Prime Power)
- Powder-coated, UV and fade resistant paint for enclosure interior and exterior
- Fully lockable enclosure and fuel fill, insulated and baffled with central lifting point
- External emergency stop switch and multi-lingual safety decals
- Customers must unload from freight carrier
- 2-Year / 2,000 Hour Limited Warranty
- Includes Generac single-axle trailer
- DOT approved tubular steel trailer with surge brakes and 3 inch ring hitch
- Transportation tie downs and safety chains with spring-loaded hooks
- LED tail, side, brake and directional lights
- 15 inch tires and polyethylene fenders
Overview
Product Category
Towable Generator
Generator Features
Automatic Voltage Regulation, Fuel Gauge, Hour Meter, Idle Control, Low THD, Battery Included
Product Weight
4530 lbs
Length
170"
Width
69"
Height
80"
Technical Specifications
Frequency
60 Hz
Running Wattage
60000 Watts
Starting Wattage
68000 Watts
Decibel Rating @ 7m
74 dB(A)
Engine
Engine Brand
John Deere
Starting System
12-Volt Key Start
Cubic Capacity
4500 cc
Horsepower
97 HP
RPM
1800 RPM
Product Assurance
EPA Compliant
Yes
Manufacturer Warranty
2 Year
- Brand: Generac
- SKU: GEN-60K-SKID-DIESEL
- Viewed: 82
- Availability: In Stock
$58,421.00
