Features
- 200-Amp Automatic Operation
- For Use With Generac Generators Only
- 277/480V 3-Phase Automatic Transfer Switch
- Designed for use with 277/480V 3-Phase generators
- For Generac Evolution and Generac Nexus Controllers
- Service Entrance Rated (Load Side and Line Side Disconnect Breakers)
- Installs between main meter and service panel
- NEMA 3R Indoor/Outdoor Rated
- Aluminum, wall mountable weather-proof enclosure
- Electrostatically applied and baked powder paint
- UL Listed 2200
Overview
- Transfer Switch Style: Service Disconnect
- Product Weight: 55 lbs
- Width: 21-13/16"
- Height: 10-5/8"
Specifications
- Voltage: 277, 480V
- Frequency: 60 Hz
- Electrical Phases: 3
- Max Generator Input: 200A
- Max Utility Input: 200A
- Enclosure Material: NEMA 3R
Product Assurance
- Certifications: UL
- Warranty: 5 Year

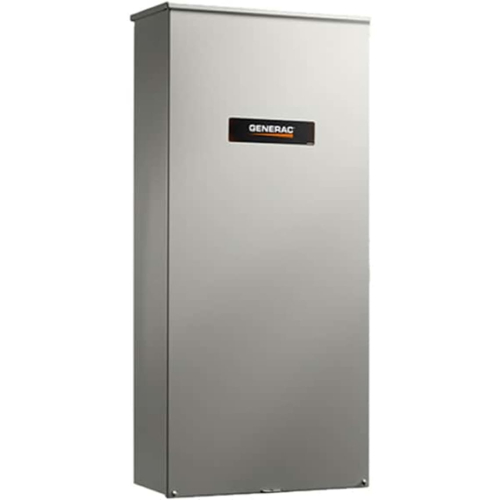

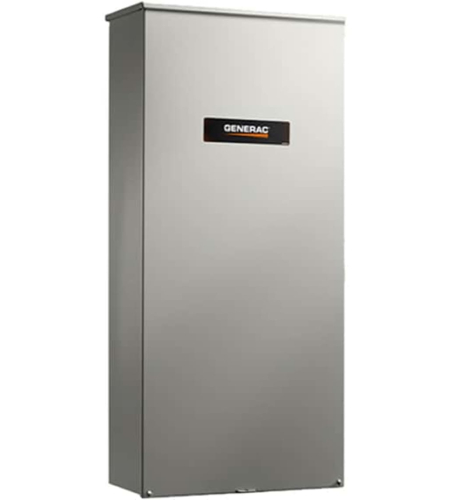

Generac 200-Amp (277 / 480V) 3-Phase Outdoor Service Disconnect Automatic Transfer Switch
- Product Code: RTSW200K3
Features
- 200-Amp Automatic Operation
- For Use With Generac Generators Only
- 277/480V 3-Phase Automatic Transfer Switch
- Designed for use with 277/480V 3-Phase generators
- For Generac Evolution and Generac Nexus Controllers
- Service Entrance Rated (Load Side and Line Side Disconnect Breakers)
- Installs between main meter and service panel
- NEMA 3R Indoor/Outdoor Rated
- Aluminum, wall mountable weather-proof enclosure
- Electrostatically applied and baked powder paint
- UL Listed 2200
Overview
- Transfer Switch Style: Service Disconnect
- Product Weight: 55 lbs
- Width: 21-13/16"
- Height: 10-5/8"
Specifications
- Voltage: 277, 480V
- Frequency: 60 Hz
- Electrical Phases: 3
- Max Generator Input: 200A
- Max Utility Input: 200A
- Enclosure Material: NEMA 3R
Product Assurance
- Certifications: UL
- Warranty: 5 Year
- Brand: Generac
- SKU: RTSW200K3
- Viewed: 59
- Availability: In Stock
$2,064.00
