Features
- 400-Amp Automatic Smart Transfer Switch
- For Generac Evolution
- Digital Power Management Technology (DPM)
- Allows your generator to work smarter, not harder
- Be Smart....Get More Out Of Your Generator
- Cycles power on and off as needed for different appliances
- Manage Up To (4) Individual HVAC Loads - No Hardware Required
- Great for homes with multiple air conditioners (24 VAC controlled)
- Up To (8) Smart Management Modules (SMM) (Sold Separately)
- Frequency (Hz) monitoring design, no control wire required
- Versatile design, easily prioritize loads and lock-out non-essential loads
- Service Entrance Rated
- Installs between main meter and service panel
- NEMA 3R Indoor/Outdoor Rated
- Aluminum, wall mountable weather-proof enclosure
- Electrostatically applied and baked powder coating paint (gray)
- Tech Spec Summary: Only For Use with Generac Generators
- Load Transition Type: Open Transition
- Withstand Rating: 22,000 Amps --- Lug Range: #4 or 2-250 MCM
- 5-Year Limited Warranty - UL Listed
Overview
- Transfer Switch Style: Service Disconnect
- Product Weight: 140 lbs
- Depth: 10"
- Width: 22"
- Height: 48"
Specifications
- Voltage: 120, 240V
- Frequency: 60 Hz
- Electrical Phases: 1
- Max Generator Input: 400A
- Max Utility Input: 400A
- Enclosure Material: NEMA 3R
Product Assurance
- Certifications: UL
- Warranty: 5 Year

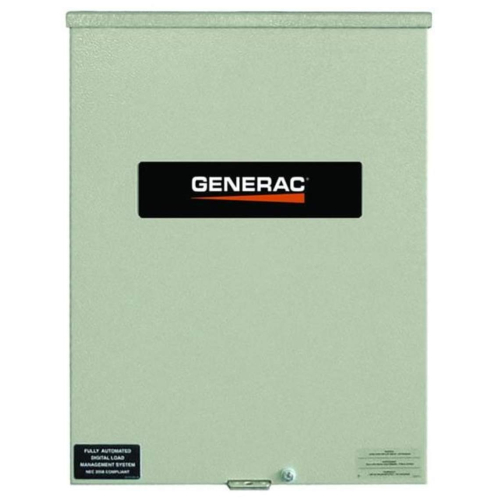

Generac 400-Amp 120 / 240V Single-Phase Service Disconnect Automatic Transfer Switch with Power Management
- Product Code: RTSW400A3
Features
- 400-Amp Automatic Smart Transfer Switch
- For Generac Evolution
- Digital Power Management Technology (DPM)
- Allows your generator to work smarter, not harder
- Be Smart....Get More Out Of Your Generator
- Cycles power on and off as needed for different appliances
- Manage Up To (4) Individual HVAC Loads - No Hardware Required
- Great for homes with multiple air conditioners (24 VAC controlled)
- Up To (8) Smart Management Modules (SMM) (Sold Separately)
- Frequency (Hz) monitoring design, no control wire required
- Versatile design, easily prioritize loads and lock-out non-essential loads
- Service Entrance Rated
- Installs between main meter and service panel
- NEMA 3R Indoor/Outdoor Rated
- Aluminum, wall mountable weather-proof enclosure
- Electrostatically applied and baked powder coating paint (gray)
- Tech Spec Summary: Only For Use with Generac Generators
- Load Transition Type: Open Transition
- Withstand Rating: 22,000 Amps --- Lug Range: #4 or 2-250 MCM
- 5-Year Limited Warranty - UL Listed
Overview
- Transfer Switch Style: Service Disconnect
- Product Weight: 140 lbs
- Depth: 10"
- Width: 22"
- Height: 48"
Specifications
- Voltage: 120, 240V
- Frequency: 60 Hz
- Electrical Phases: 1
- Max Generator Input: 400A
- Max Utility Input: 400A
- Enclosure Material: NEMA 3R
Product Assurance
- Certifications: UL
- Warranty: 5 Year
- Brand: Generac
- SKU: RTSW400A3
- Viewed: 65
- Availability: In Stock
$2,685.00
