Features

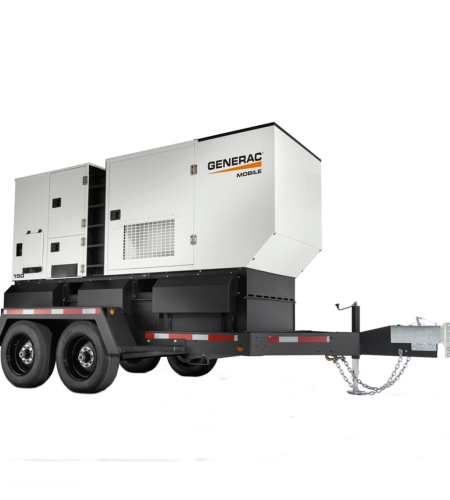

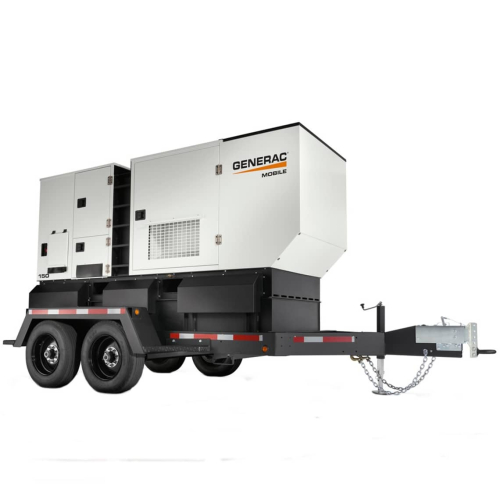

• Generac Mobile MDG150DF4 Skid-Mount Diesel Generator
• Designed and engineered for optimum performance and reliability
• Marathon Electric Brushless Alternator - Multi-Phase Output
• Three-Phase: 120 kW / 150 kVA (Prime), 144 kW / 180 kVA (Standby)
• Single-Phase: 95 kW / 95 kVA (Prime), 95 kW / 95 kVA (Standby)
• PM600 Voltage Regulator
• Provides Voltage regulation of +/- 0.5% for cleaner power
• 3-Position Voltage Selector Switch
• Single Phase - 120/240V Zig Zag
• 3-Phase - 120/208V Low Wye and 3-Phase 277/480V High Wye
• 6.8L John Deer Turbocharged, After-Cooled Diesel Engine (EPA Tier 4 Final)
• Fuel efficient design runs at 1800 RPM for extended engine life
• Rubber vibration dampers isolate engine/generator from frame for quieter operation
• 358-Gallon Polyethylene Internal Fuel Tank with 3.5" Fill Port
• Provides up to 39 hours of run time at 100% load
• Deep SeaController with 4-Line Back-lit LCD Text Display
• Push button design; Manual or Auto Start, Engine Start, Stop/Reset, Alarm Mute
• Scrolling Arrows for Diagnostic Information; Engine and Generator diagnostics
• *Please see spec sheet for additional controller information
• 9-Warning and Shutdown Alarms with 250-Event (Date/Time Stamp) History Log
• Provides safer operation by monitoring engine and generator systems
• 600-Amp Main Breaker With Shunt Trip
• Lockable control box door with diagnostics window;
• Remote Start/Stop contacts located in lug box
• Lockable lug box with safety switch; Output ground connection lug inside lug box
• (2) 120V 20A GFCI Duplex Outlets (5-20R) and (3) 240V 50A (Non-Nema 6369) Twistlock
• Individually breakered for added safety during operation
• Sound Attenuated Aluminum Enclosure - 75 dB(A) at 23' (Prime Power)
• Powder-coated, UV and fade resistant paint for exterior/interior of enclosure
• Fully-lockable (enclosure and fuel fill), insulated and baffled with central lifting point
• External Emergency Stop Switch; Multi-lingual operating/safety decals
• CUSTOMERS MUST UNLOAD FROM FREIGHT CARRIER
• 2-Year / 2,000 Hour Limited Warranty
• Includes Generac Single-Axle Trailer
• For MDG150DF4 Skid-Mount Diesel Generators
• DOT Approved Tubular Steel Trailer with Surge Brakes and 3" Ring Hitch
• Transportation tie downs, Safety chains with spring-loaded hooks
• LED Tail, Side, Brake and Directional Lights
• 17.5" Tires and polyethylene fenders
