Features
| Generac Protector Series Diesel Standby Generator | Designed for residential and light commercial applications |
| Fully Automatic Operation When Paired with Generac ATS | Generator is only compatible with Generac Auto Transfer Switches |
| Includes Mobile Link Wi-Fi / Ethernet Connectivity* | Monitor generator status on a smart phone, tablet or PC |
| *Requires internet connection | Mitsubishi 2.5L In-Line 4-Cylinder Diesel Engine |
| Fuel efficient design runs at 1800 RPM for long engine life | Integrated, Extended-Run, 95-Gallon Double-Wall Base Fuel Tank |
| Provides up to 92.2 hours of run time at 1/2 load | Two-Line LCD Evolution Controller |
| Easy viewing, monitoring and management of generator functions | Quiet-Test |
| Runs at a lower RPM, is quieter and consumes less fuel | Isochronous Electronic Governor Control |
| Precise load response and voltage/frequency regulation (+ or - 1%) | Corrosion-Resistant Aluminum Enclosure |
| Enhanced durability, ideal for coastal and salt-water environments | Sound dampening design limits sound pressure to a low 70dB(A) |
| Code Ready - Compatibility With A Variety Of Environments | External Vent and Fill, UL/CUL 142-Listed Double Wall Based Tank |
| UL/CUL 2200-Listed Generator - 5-Year Limited Warranty |
Overview
| Product Category | Standby Generator |
| Generator Features | Low Oil Alert/Shutdown |
| Product Weight | 1757 lbs |
| Length | 81" |
| Width | 31" |
| Height | 61" |
Specifications
| Voltage | 120, 240V |
| Frequency | 60 Hz |
| Running Wattage | 20,000 Watts |
| Amperage | 83A |
| Decibel Rating @ 7m | 65 - 70 dbA |
| Enclosure Material | Aluminum |
| Mounting Pad | Concrete (Not Included) |
| Cooling Type | Liquid Cooled |
Engine
| Engine Brand | Mitsubishi |
| Starting System | 12v Auto Start |
| Cubic Capacity | 2500 CC |
| RPM | 1800 RPM |
| Low Oil Alert/Shutdown | Yes |
Product Assurance
| Certifications | UL |
| Warranty | 5 Year |

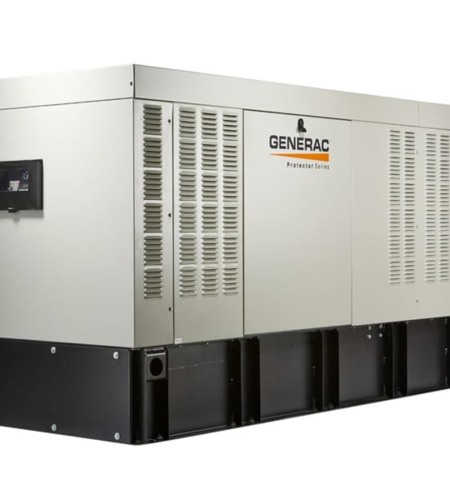

Generac Protector RD Series 20kW (120 / 240V) Single-Phase Liquid Cooled Diesel Extended Run Standby Generator with Mobile Link
- Product Code: RD02025ADAL
Features
| Generac Protector Series Diesel Standby Generator | Designed for residential and light commercial applications |
| Fully Automatic Operation When Paired with Generac ATS | Generator is only compatible with Generac Auto Transfer Switches |
| Includes Mobile Link Wi-Fi / Ethernet Connectivity* | Monitor generator status on a smart phone, tablet or PC |
| *Requires internet connection | Mitsubishi 2.5L In-Line 4-Cylinder Diesel Engine |
| Fuel efficient design runs at 1800 RPM for long engine life | Integrated, Extended-Run, 95-Gallon Double-Wall Base Fuel Tank |
| Provides up to 92.2 hours of run time at 1/2 load | Two-Line LCD Evolution Controller |
| Easy viewing, monitoring and management of generator functions | Quiet-Test |
| Runs at a lower RPM, is quieter and consumes less fuel | Isochronous Electronic Governor Control |
| Precise load response and voltage/frequency regulation (+ or - 1%) | Corrosion-Resistant Aluminum Enclosure |
| Enhanced durability, ideal for coastal and salt-water environments | Sound dampening design limits sound pressure to a low 70dB(A) |
| Code Ready - Compatibility With A Variety Of Environments | External Vent and Fill, UL/CUL 142-Listed Double Wall Based Tank |
| UL/CUL 2200-Listed Generator - 5-Year Limited Warranty |
Overview
| Product Category | Standby Generator |
| Generator Features | Low Oil Alert/Shutdown |
| Product Weight | 1757 lbs |
| Length | 81" |
| Width | 31" |
| Height | 61" |
Specifications
| Voltage | 120, 240V |
| Frequency | 60 Hz |
| Running Wattage | 20,000 Watts |
| Amperage | 83A |
| Decibel Rating @ 7m | 65 - 70 dbA |
| Enclosure Material | Aluminum |
| Mounting Pad | Concrete (Not Included) |
| Cooling Type | Liquid Cooled |
Engine
| Engine Brand | Mitsubishi |
| Starting System | 12v Auto Start |
| Cubic Capacity | 2500 CC |
| RPM | 1800 RPM |
| Low Oil Alert/Shutdown | Yes |
Product Assurance
| Certifications | UL |
| Warranty | 5 Year |
- Brand: Generac
- SKU: RD02025ADAL
- Viewed: 11
- Availability: In Stock
$1,346.30
