Features
- 600-Amp Automatic Transfer Switch for 120/240V Single-Phase applications
- Designed for use with Cummins Onan liquid-cooled standby generators
- Features the advanced PowerCommand 40-11 controller
- Standard installation design requires a sub-panel for overload protection
- Corrosion-resistant NEMA 1R enclosure
- Approved for indoor installations
- Lockable enclosure provides enhanced security
- PowerCommand 40-11 control with LCD digital display
- Microprocessor-based controller with fully featured functionality
- Front-panel PC software configuration capability
- Three-phase sensing on both utility and generator sources
- Supports Modbus RTU and TCP network communication
- Configurable output contacts for flexible system integration
- Event logging, synch check, and manual restore to Source 1
- Programmable transition (open transition timing)
- Allows complete load disconnection from both power sources during transfer
- Mechanical and electrical interlocking design
- Prevents source-to-source connection through power and control wiring
- Door-mounted controls for easy operation and monitoring
- Single-plug harness design simplifies installation and servicing
- Field-programmable settings for application flexibility
- UL and CSA certified construction
Specifications
| Transfer Switch Style | Standard Installation |
| Voltage | 120 / 240V |
| Frequency | 60 Hz |
| Electrical Phases | 1 |
| Max Generator Input | 600A |
| Max Utility Input | 600A |
| Enclosure Material | NEMA 1R |
| Width | 25-1/2" |
| Height | 18" |
| Product Weight | 225 lbs |
| Certifications | UL, CSA |
| Warranty | 1 Year |

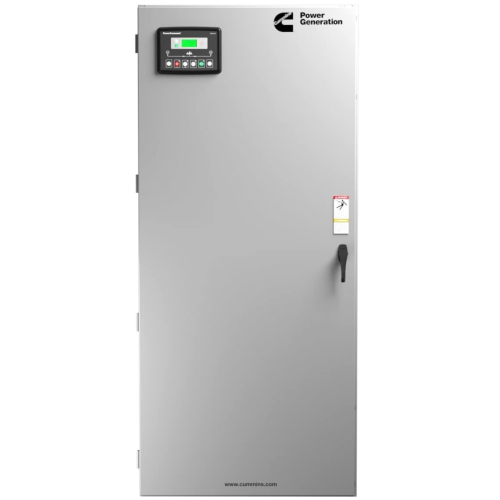

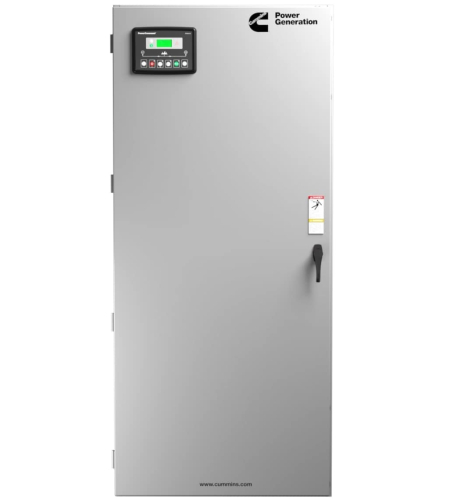

Cummins OTEC 600-Amp (120 / 240V) Single-Phase PowerCommand Indoor Automatic Transfer Switch
- Product Code: A075F145
Features
- 600-Amp Automatic Transfer Switch for 120/240V Single-Phase applications
- Designed for use with Cummins Onan liquid-cooled standby generators
- Features the advanced PowerCommand 40-11 controller
- Standard installation design requires a sub-panel for overload protection
- Corrosion-resistant NEMA 1R enclosure
- Approved for indoor installations
- Lockable enclosure provides enhanced security
- PowerCommand 40-11 control with LCD digital display
- Microprocessor-based controller with fully featured functionality
- Front-panel PC software configuration capability
- Three-phase sensing on both utility and generator sources
- Supports Modbus RTU and TCP network communication
- Configurable output contacts for flexible system integration
- Event logging, synch check, and manual restore to Source 1
- Programmable transition (open transition timing)
- Allows complete load disconnection from both power sources during transfer
- Mechanical and electrical interlocking design
- Prevents source-to-source connection through power and control wiring
- Door-mounted controls for easy operation and monitoring
- Single-plug harness design simplifies installation and servicing
- Field-programmable settings for application flexibility
- UL and CSA certified construction
Specifications
| Transfer Switch Style | Standard Installation |
| Voltage | 120 / 240V |
| Frequency | 60 Hz |
| Electrical Phases | 1 |
| Max Generator Input | 600A |
| Max Utility Input | 600A |
| Enclosure Material | NEMA 1R |
| Width | 25-1/2" |
| Height | 18" |
| Product Weight | 225 lbs |
| Certifications | UL, CSA |
| Warranty | 1 Year |
- Brand: Cummins
- SKU: A075F145
- Viewed: 97
- Availability: In Stock
$7,074.00
