Features
- Cummins PowerCommandOTEC Automatic Transfer Switch
- Features the New PowerCommand40-11 Control
- 225-Amp Automatic Transfer Switch (277/480V 3-Phase)
- For use with Cummins Onan Liquid Cooled Standby Generators
- Designed For Standard Installation
- Requires a sub-panel for overload protection
- Corrosion-Resistant NEMA 1R Enclosure
- Approved for indoor applications
- Lockable enclosure provides added security
- PowerCommand40-11 Control with LCD Digital Display
- Microprocessor-based control, fully featured design
- Front-panel PC software configuration with 3-Phase sensing on both sources
- Modbus RTU and TCP network communication and configurable output contact
- Event logging, synch check and manual restore to S1
- Programmed Transition (Open Transition Timing)
- Can be adjusted to completely disconnect the load from both sources
- Mechanical and Electrical Interlocking Design
- Prevents source-to-source connection through power/control wire
- Easy Service and Access
- Door mounted controls, single-plug harness and field programmable
- UL/CSA Certified
Overview
- Transfer Switch Style: Standard Installation
- Product Weight: 165 lbs
- Width: 26"
- Height: 16"
Specifications
- Voltage: 277V / 480V
- Frequency: 60 Hz
- Electrical Phases: 3
- Max Generator Input: 225A
- Max Utility Input: 225A
- Enclosure Material: NEMA 1R
Product Assurance
- Certifications: UL
- Warranty: 1 Year

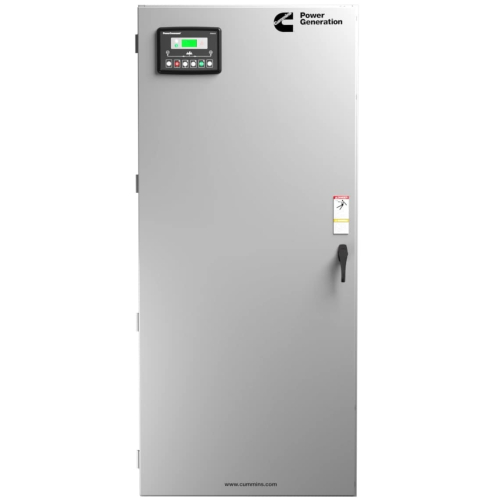

Cummins OTEC 225-Amp (277 / 480V) 3-Phase PowerCommand Indoor Automatic Transfer Switch
- Product Code: A075F137
Features
- Cummins PowerCommandOTEC Automatic Transfer Switch
- Features the New PowerCommand40-11 Control
- 225-Amp Automatic Transfer Switch (277/480V 3-Phase)
- For use with Cummins Onan Liquid Cooled Standby Generators
- Designed For Standard Installation
- Requires a sub-panel for overload protection
- Corrosion-Resistant NEMA 1R Enclosure
- Approved for indoor applications
- Lockable enclosure provides added security
- PowerCommand40-11 Control with LCD Digital Display
- Microprocessor-based control, fully featured design
- Front-panel PC software configuration with 3-Phase sensing on both sources
- Modbus RTU and TCP network communication and configurable output contact
- Event logging, synch check and manual restore to S1
- Programmed Transition (Open Transition Timing)
- Can be adjusted to completely disconnect the load from both sources
- Mechanical and Electrical Interlocking Design
- Prevents source-to-source connection through power/control wire
- Easy Service and Access
- Door mounted controls, single-plug harness and field programmable
- UL/CSA Certified
Overview
- Transfer Switch Style: Standard Installation
- Product Weight: 165 lbs
- Width: 26"
- Height: 16"
Specifications
- Voltage: 277V / 480V
- Frequency: 60 Hz
- Electrical Phases: 3
- Max Generator Input: 225A
- Max Utility Input: 225A
- Enclosure Material: NEMA 1R
Product Assurance
- Certifications: UL
- Warranty: 1 Year
- Brand: Cummins
- SKU: A075F137
- Viewed: 88
- Availability: In Stock
$3,104.00
