Features
- Cummins PowerCommand OTEC Automatic Transfer Switch
- Features the advanced PowerCommand 40-11 control system
- 225-Amp automatic transfer switch for 120/208V three-phase applications
- Designed for use with Cummins Onan liquid-cooled standby generators
- Built for standard installation applications
- Requires a sub-panel for overload protection
- Corrosion-resistant NEMA 3R enclosure for indoor or outdoor use
- Approved for both indoor and outdoor installations
- Lockable enclosure provides enhanced security
- PowerCommand 40-11 controller with LCD digital display
- Microprocessor-based control with fully featured operation
- Front-panel PC software configuration capability
- Three-phase sensing available on both power sources
- Supports Modbus RTU and TCP network communication
- Configurable output contacts for flexible integration
- Event logging for system monitoring and diagnostics
- Includes synch check and manual restore to Source 1
- Programmable open transition timing for load management
- Allows complete load disconnection from both power sources
- Mechanical and electrical interlocking prevents source-to-source connection
- Door-mounted controls and single-plug harness simplify servicing
- Field programmable design for installation flexibility
- UL and CSA certified for safety and compliance
Specifications
| Transfer Switch Style | Standard Installation |
| Product Weight | 215 lbs |
| Width | 30-1/2" |
| Height | 16" |
| Voltage | 120/208V |
| Frequency | 60 Hz |
| Electrical Phases | 3 |
| Max Generator Input | 225A |
| Max Utility Input | 225A |
| Enclosure Material | NEMA 3R |
| Certifications | UL, CSA |
| Warranty | 1 Year |

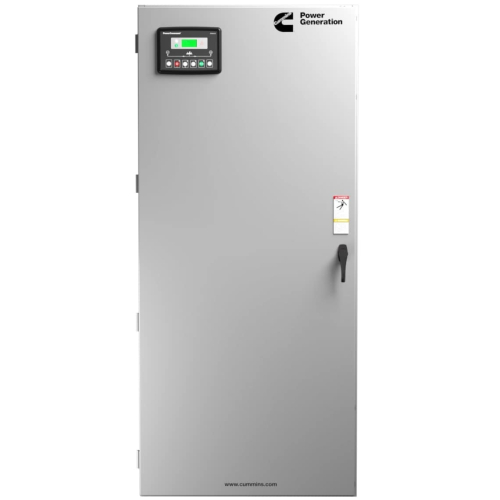

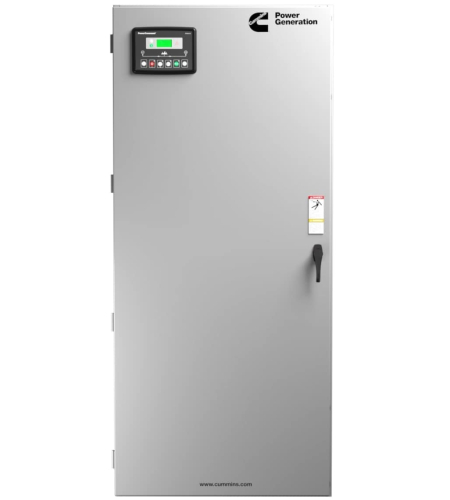

Cummins OTEC 225-Amp (120 / 208V) 3-Phase PowerCommand Outdoor Automatic Transfer Switch
- Product Code: A075F136
Features
- Cummins PowerCommand OTEC Automatic Transfer Switch
- Features the advanced PowerCommand 40-11 control system
- 225-Amp automatic transfer switch for 120/208V three-phase applications
- Designed for use with Cummins Onan liquid-cooled standby generators
- Built for standard installation applications
- Requires a sub-panel for overload protection
- Corrosion-resistant NEMA 3R enclosure for indoor or outdoor use
- Approved for both indoor and outdoor installations
- Lockable enclosure provides enhanced security
- PowerCommand 40-11 controller with LCD digital display
- Microprocessor-based control with fully featured operation
- Front-panel PC software configuration capability
- Three-phase sensing available on both power sources
- Supports Modbus RTU and TCP network communication
- Configurable output contacts for flexible integration
- Event logging for system monitoring and diagnostics
- Includes synch check and manual restore to Source 1
- Programmable open transition timing for load management
- Allows complete load disconnection from both power sources
- Mechanical and electrical interlocking prevents source-to-source connection
- Door-mounted controls and single-plug harness simplify servicing
- Field programmable design for installation flexibility
- UL and CSA certified for safety and compliance
Specifications
| Transfer Switch Style | Standard Installation |
| Product Weight | 215 lbs |
| Width | 30-1/2" |
| Height | 16" |
| Voltage | 120/208V |
| Frequency | 60 Hz |
| Electrical Phases | 3 |
| Max Generator Input | 225A |
| Max Utility Input | 225A |
| Enclosure Material | NEMA 3R |
| Certifications | UL, CSA |
| Warranty | 1 Year |
- Brand: Cummins
- SKU: A075F136
- Viewed: 43
- Availability: In Stock
$3,919.00
Tags:CumminsOTECPowerCommandautomatic transfer switch225 amp120/208V3 phaseoutdoorNEMA 3Rstandby power
