Features
- Cummins PowerCommand OTEC Automatic Transfer Switch
- Features the New PowerCommand 40-11 Control
- 125-Amp Automatic Transfer Switch (120/208V 3-Phase)
- For use with Cummins Onan Liquid Cooled Standby Generators
- Designed For Standard Installation
- Requires a sub-panel for overload protection
- Corrosion-Resistant NEMA 1R Enclosure
- Approved for indoor applications
- Lockable enclosure provides added security
- PowerCommand 40-11 Control with LCD Digital Display
- Microprocessor-based control, fully featured design
- Front-panel PC software configuration with 3-phase sensing on both sources
- Modbus RTU and TCP network communication and configurable output contact
- Event logging, synch check and manual restore to S1
- Programmed Transition (Open Transition Timing)
- Can be adjusted to completely disconnect the load from both sources
- Mechanical and Electrical Interlocking Design
- Prevents source-to-source connection through power/control wire
- Easy Service and Access
- Door mounted controls, single-plug harness and field programmable
- UL/CSA Listed
Overview
- Transfer Switch Style: Standard Installation
- Product Weight: 82 lbs
- Width: 20-1/2"
- Height: 12"
Specifications
- Voltage: 120, 208V
- Frequency: 60 Hz
- Electrical Phases: 3
- Max Generator Input: 125A
- Max Utility Input: 125A
- Enclosure Material: NEMA 1R
Product Assurance
- Certifications: UL
- Warranty: 1 Year

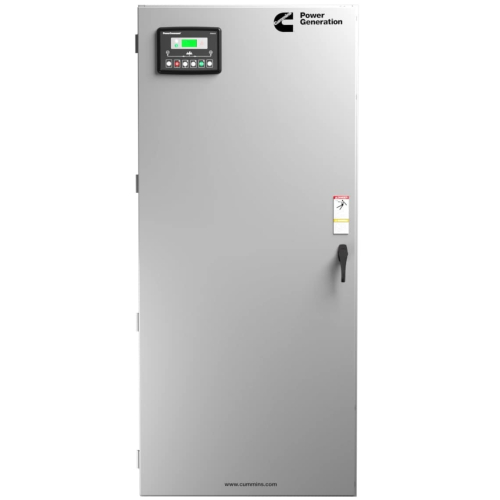

Cummins OTEC 125-Amp (120 / 208V) 3-Phase PowerCommand Indoor Automatic Transfer Switch
- Product Code: A075F123
Features
- Cummins PowerCommand OTEC Automatic Transfer Switch
- Features the New PowerCommand 40-11 Control
- 125-Amp Automatic Transfer Switch (120/208V 3-Phase)
- For use with Cummins Onan Liquid Cooled Standby Generators
- Designed For Standard Installation
- Requires a sub-panel for overload protection
- Corrosion-Resistant NEMA 1R Enclosure
- Approved for indoor applications
- Lockable enclosure provides added security
- PowerCommand 40-11 Control with LCD Digital Display
- Microprocessor-based control, fully featured design
- Front-panel PC software configuration with 3-phase sensing on both sources
- Modbus RTU and TCP network communication and configurable output contact
- Event logging, synch check and manual restore to S1
- Programmed Transition (Open Transition Timing)
- Can be adjusted to completely disconnect the load from both sources
- Mechanical and Electrical Interlocking Design
- Prevents source-to-source connection through power/control wire
- Easy Service and Access
- Door mounted controls, single-plug harness and field programmable
- UL/CSA Listed
Overview
- Transfer Switch Style: Standard Installation
- Product Weight: 82 lbs
- Width: 20-1/2"
- Height: 12"
Specifications
- Voltage: 120, 208V
- Frequency: 60 Hz
- Electrical Phases: 3
- Max Generator Input: 125A
- Max Utility Input: 125A
- Enclosure Material: NEMA 1R
Product Assurance
- Certifications: UL
- Warranty: 1 Year
- Brand: Cummins
- SKU: A075F123
- Viewed: 51
- Availability: In Stock
$2,423.00
